BATTERY BASED INVERTERS | EPEVER | 800W | IP1000-11 (MNN)

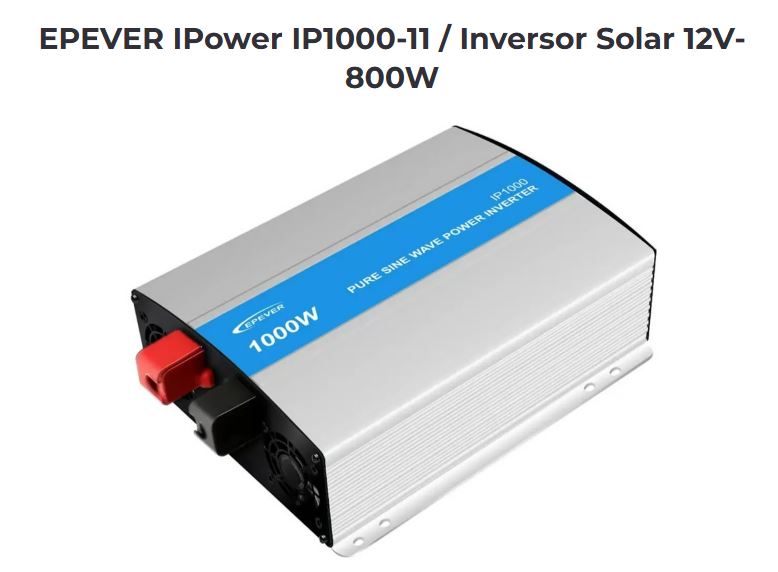

🔌 Epever IP1000‑11 – 1,000 W Pure Sine Wave Battery Inverter (IPower‑Plus Series)

Robust and versatile, this inverter is ideal for off‑grid systems, RVs, boats, and home backup—converting 12 V battery power into clean AC with high reliability.

⚙️ Key Features

• Pure Sine Wave Output using advanced SPWM tech—safe for sensitive electronics.

• DC Input Options: 12 V nominal (range 10.8–16 V); IPower‑Plus series also supports 24 V and 48 V models.

• Output Power Ratings: 800 W continuous, 1,000 W for 15 minutes, and 1,600 W surge – perfect for high startup loads.

• High Efficiency: Approximately 92.5% peak efficiency. Low standby current (<0.8 A).

• Comprehensive Protections: Includes reverse polarity, under/over-voltage, overload, short-circuit, overheat protection, and automatic fan cooling.

• User-Friendly Design: USB port (5 V/1 A), RS485 communication (optional), LED status indicators, metal enclosure with electrical isolation.

📏 Quick Specs

• Input Voltage: Rated 12 V (10.8–16 V)

• AC Output: Selectable 110/120 VAC or 220/230 VAC; 50/60 Hz via DIP switch

• Power: 800 W continuous / 1,000 W for 15 min / 1,600 W surge

• Efficiency: 92.5% max

• Standby Current: <0.8 A

• Dimensions & Weight: ~298 × 231.5 × 98.5 mm; ~3.9 kg

• Environmental: Operating temp range –20 °C to +60 °C; housing rated IP20

📄 Official Datasheet & Manual
Download full specifications, wiring diagrams, and safety guidelines:
Epever IPower‑Plus Series Datasheet (PDF)
