Description

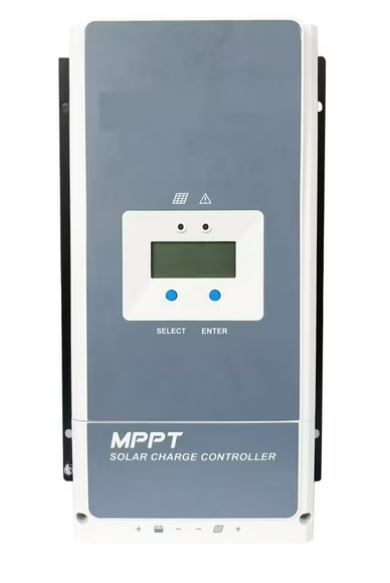

🔌 EPEver Tracer 8420AN – 80 A MPPT Solar Charge Controller (Auto 12/24/36/48 V)
A heavy-duty MPPT controller from the Tracer AN (50–100 A) series, engineered for large off-grid and hybrid solar systems. It supports up to ~4 kW PV input, offers top-tier tracking performance, and delivers robust protection features and IoT readiness for versatile installations.
⚙️ Key Features
-
High-efficiency MPPT with ≥ 99.5% tracking and up to 98.5% DC/DC conversion efficiency.
-
Auto-detection of system voltage (12 V / 24 V / 36 V / 48 V) for plug‑and‑play setup.
-
80 A rated charge current, handling up to ~3,000 W PV at 48 V systems (~4,000 W max across all voltages).
-
Supports PV input voltages up to 150 V‑200 V Voc, with broad MPP range.
-
Compatible with sealed, gel, flooded lead‑acid and lithium batteries. Includes load, generator, and utility relay outputs for hybrid system control.
-
RS485 Modbus communication for remote monitoring and supports MT50 display.
-
Industrial-grade reliability: IP30 indoor-rated enclosure; typical operating range −25 °C to +50 °C.
📏 Technical Summary
📄 Official Datasheet
This link opens correctly in Shopify and provides full specifications, wiring diagrams, and operating details:
