Description

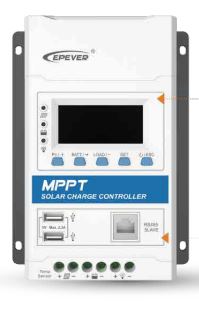

EPEver Triron 4210N MPPT Charge Controller
The EPEver Triron 4210N is a high-efficiency MPPT charge controller designed for 12V/24V off-grid solar systems, with a robust 40A charge capacity. Its modular structure allows flexible configurations with optional display and communication modules. Equipped with intelligent tracking and safety features, it's ideal for residential, commercial, and remote solar setups.
- Advanced MPPT technology with up to 99.5% tracking efficiency
- Supports multiple battery types: Sealed, Gel, Flooded, and Lithium
- Three-stage charging: Bulk, Boost, Float
- Multiple load control modes and system protections
- Compatible with MT50 monitor and PC software via RS485
| Technical Specifications | |
|---|---|
| Model | Triron 4210N |
| Rated Charge Current | 40A |
| System Voltage | 12V / 24V Auto |
| Max. PV Input Voltage | 100V |
| Max. PV Input Power | 12V system: 520W 24V system: 1040W |
| Battery Voltage Range | 8V – 32V |
| Operating Temperature | -25°C to +45°C (-13°F to 113°F) |
| Dimensions | 242 x 168 x 66.5 mm (9.53 x 6.61 x 2.62 in) |
| Weight | 2.06 kg (4.54 lb) |
📄 Click here to download the official TRIRON Series datasheet (PDF)
