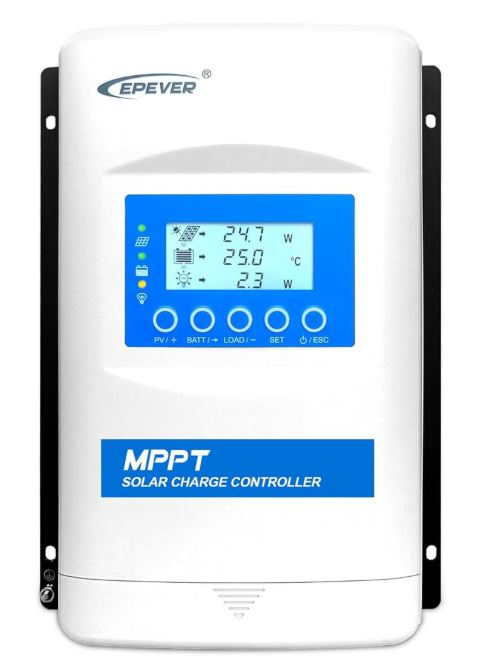

EPEver XTRA3215N‑XDS2 MPPT Charge Controller
The EPEver XTRA3215N‑XDS2 is a high-performance 30A MPPT solar charge controller designed for 12 V / 24 V systems, featuring an integrated XDS2 LCD display. With up to 99.5% tracking efficiency and ultra‑high conversion efficiency, it ensures maximum energy utilization. Optional Modbus RS485 communication and advanced safety features make it ideal for residential, RV, remote monitoring, and off‑grid installations.
- 30A MPPT charge controller with up to 99.5% tracking efficiency (MPPT algorithm)
- Rated charge power: approx. 390 W at 12 V / 780 W at 24 V
- Support for Sealed, Gel, Flooded, Lithium batteries; programmable via LCD display
- Modbus communication via RS485 with isolated interface
- Comprehensive protections: overcharge, over-discharge, reverse polarity, short-circuit, over-temperature, and self-derating under high temperature
| Technical Specifications | |
|---|---|
| Model | XTRA3215N‑XDS2 |
| Rated Charge Current | 30 A |
| System Voltage | 12 V / 24 V Auto |
| Max PV Open‑Circuit Voltage | 150 V |
| Max PV Input Power | 390 W (12 V), 780 W (24 V) |
| Dimensions (L × W × H) | 255 × 185 × 67.8 mm (10.0″ × 7.3″ × 2.7″) |
| Weight | 1.70 kg (3.75 lb) |
| Operating Temp. | −25 °C to +45 °C (with LCD) |
| Ingress Protection | IP33 |
| Communication Interface | RS485 (Modbus) |
