Description

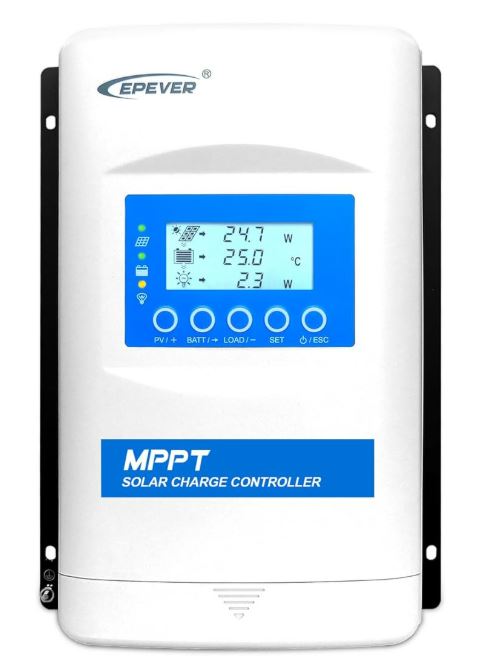

EPEver XTRA3415N‑XDS2 MPPT Charge Controller
The EPEver XTRA3415N‑XDS2 is a high-performance MPPT solar charge controller designed for 12 V / 24 V / 36 V / 48 V systems, featuring a built-in XDS2 LCD display for detailed system insight. With a rated current of 30 A and a high PV voltage limit of 150 V, it delivers efficient energy harvesting across a wide range of applications including residential, off-grid, RV, and commercial installations.
- 30 A MPPT controller with up to 99.5 % tracking efficiency
- Compatible with Sealed, Gel, Flooded, and Lithium battery types
- Supports system voltages: 12 V / 24 V / 36 V / 48 V auto-detect
- Maximum PV open-circuit voltage: 150 V
- Maximum PV input power: 390 W @12 V, 780 W @24 V, 1170 W @36 V, 1560 W @48 V
- Integrated XDS2 LCD display for real-time PV, battery, and load monitoring
- Isolated RS485 connector with Modbus communication protocol
- Electronic protections: overcharge, over-discharge, reverse polarity, short-circuit, over‑temperature, and automatic power derating
| Technical Specifications | |
|---|---|
| Model | XTRA3415N‑XDS2 |
| Rated Charge/Discharge Current | 30 A |
| System Voltage | 12/24/36/48 VDC Auto |
| Max. PV Voltage (Voc) | 150 V |
| Max. PV Power | 390 W @12 V 780 W @24 V 1170 W @36 V 1560 W @48 V |
| Dimensions (L × W × H) | 255 × 187 × 75.7 mm |
| Weight | 2.07 kg |
| Efficiency | Max. conversion ~98.1% | Full load ~96.9% |
| Self‑Consumption | ≤35 mA (12 V) · ≤22 mA (24 V) · ≤16 mA (36/48 V) |
| Communication Interface | RS485 Modbus (isolated) |
| Ingress Protection | IP32 |
📄 Click here to download the official XTRA‑N Series datasheet (PDF)
