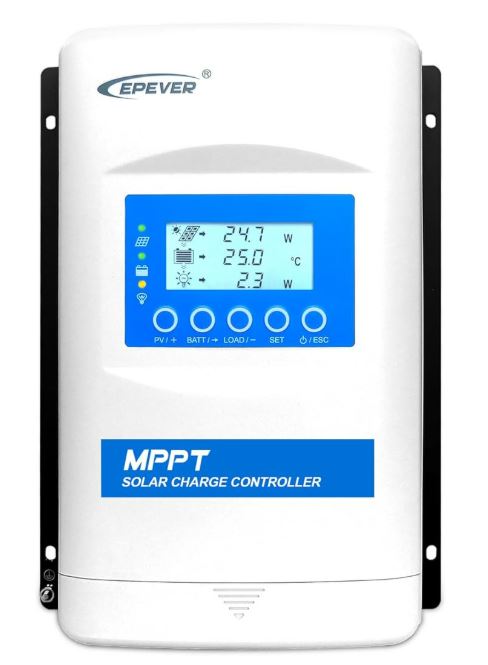

EPEver XTRA4415N‑XDS2 MPPT Charge Controller
The EPEver XTRA4415N‑XDS2 is a high-performance 40 A MPPT solar charge controller compatible with 12 V / 24 V / 36 V / 48 V systems. Featuring an integrated XDS2 LCD display and Bluetooth-ready Modbus RS485 communication, it delivers ultra-efficient energy conversion and intelligent protection, ideal for residential, RV, off-grid, or commercial solar applications.
- 40 A MPPT charge controller with up to 99.5 % tracking efficiency and up to ~98 % conversion efficiency :contentReference[oaicite:1]{index=1}
- Supports Sealed, Gel, Flooded, and Lithium battery types with programmable settings via LCD or PC/App
- Rated solar input power: 520 W @12 V, 1040 W @24 V, 1560 W @36 V, 2080 W @48 V :contentReference[oaicite:2]{index=2}
- Maximum PV open-circuit voltage: 150 V (or 138 V at 25 °C) :contentReference[oaicite:3]{index=3}
- Integrated LCD display (XDS2) plus RS485 interface (Modbus protocol, isolated)
- Comprehensive protection against overcharge, discharge, reverse polarity, over-temperature, load faults, and automatic derating
| Technical Specifications | |
|---|---|
| Model | XTRA4415N‑XDS2 |
| Rated Charge / Discharge Current | 40 A |
| System Voltage | 12 / 24 / 36 / 48 V Auto |
| Max PV Open‑Circuit Voltage (Voc) | 150 V (138 V @ 25 °C) |
| Max PV Input Power | 520 W (12 V) 1040 W (24 V) 1560 W (36 V) 2080 W (48 V) |
| Dimensions (L × W × H) |
255 × 189 × 83.2 mm |
| Weight | 2.47 kg (5.45 lb) |
| Efficiency | Mppt ≥ 99.5 % • DC/DC max ~98 % / full load ~97 % :contentReference[oaicite:4]{index=4} |
| Self‑Consumption | ≤35 mA (12 V); ≤22 mA (24 V); ≤16 mA (36/48 V) :contentReference[oaicite:5]{index=5} |
| Operating Temperature | −25 °C to +50 °C |
| Ingress Protection | IP33 |
| Communication | RS485 (isolated Modbus), LCD display XDS2, Bluetooth support |
📄 Click here to download the official XTRA‑N Series datasheet (PDF)
