Description
Freight shipping will be calculated per order, please call or email for freight shipping quote. (859) 428-7292 or info@mannsolar.com
Packaging & Sales Information
-
Sold by pallet: 35 panels per pallet

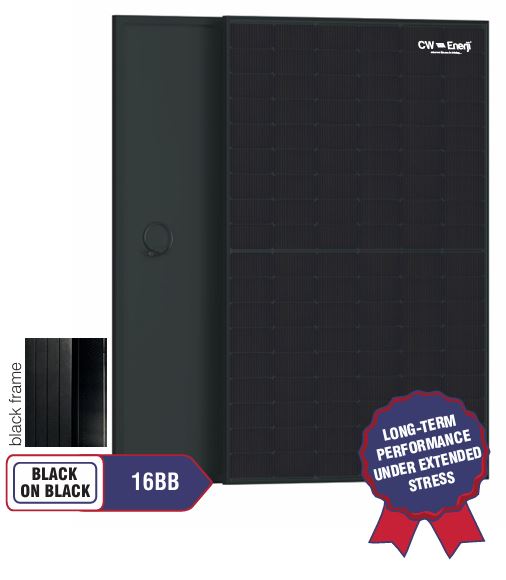

CW Energy 450W Black on Black – High-Efficiency Half-Cut Module (CWT450-108TNB10)
The CW Energy 450W Black on Black module is a premium high-efficiency solar panel designed for residential and light commercial applications where performance and aesthetics matter. Built with 108 half-cut cells (6×18 configuration) and advanced 16BB multi-busbar technology, this module delivers strong power density, reliability, and long-term durability.
With its sleek full black design, high efficiency, and positive power tolerance, this module is ideal for rooftop installations requiring both visual appeal and dependable energy production.
Key Features
-
450W rated power output (STC)
-
23.04% module efficiency, maximizing energy production per square foot
-
0~+5W positive power tolerance for guaranteed output
-
Black on Black design with black frame for premium rooftop aesthetics
-
16BB half-cut cell technology for improved current flow and reduced losses
-
Outstanding low-irradiation performance, producing more energy in cloudy and weak-light conditions
-
Self-cleaning anti-reflection glass to minimize dust accumulation
-
Tested mechanical load resistance: 5400 Pa snow / 2400 Pa wind
Technical Specifications (450W Model)
-
Model: CWT450-108TNB10
-
Peak Power (Pmax): 450W
-
Maximum Power Voltage (Vmp): 33.14V
-
Maximum Power Current (Imp): 13.58A
-
Open Circuit Voltage (Voc): 39.31V
-
Short Circuit Current (Isc): 14.38A
-
Maximum System Voltage: 1500V DC
-
Operating Temperature: -40°C to +85°C
-
Temperature Coefficient (Pmax): -0.30%/°C
-
Module Dimensions: 1722 × 1134 × 30 mm
-
Weight: 21.45 kg (47.29 lb)
-
Maximum Series Fuse Rating: 25A
-
Protection Class: Class II
Warranty
-
25-Year Product Warranty
-
30-Year Performance Warranty
The CW Energy 450W Black on Black module is an excellent choice for customers seeking modern aesthetics, high efficiency, and long-term performance assurance in residential installations.
