Description
Freight shipping will be calculated per order, please call or email for freight shipping quote. (859) 428-7292 or info@mannsolar.com
Packaging & Sales Information
-
Sold by pallet: 31 panels per pallet

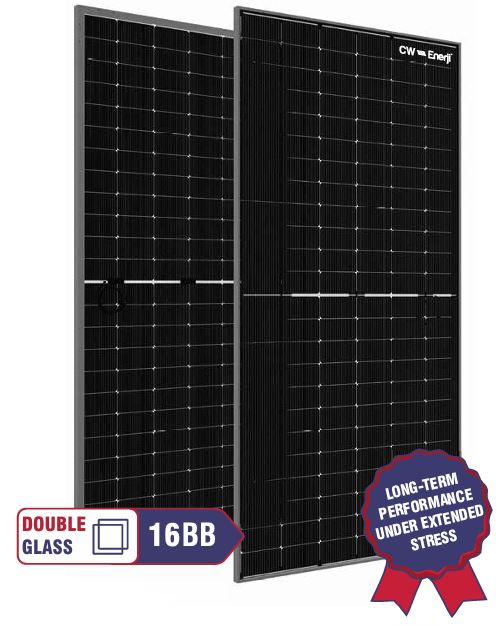

CW Energy 595W – Bifacial High-Efficiency Dual Glass Module (CWT595-144TNB10)
The CW Energy 595W is a high-performance bifacial, double-glass solar module engineered for durability, high efficiency, and long-term reliability. Designed with 144 half-cut cells (6×24 configuration) and advanced 16BB technology, this module delivers excellent power density and strong performance even in low irradiation conditions.
With 0~+5W positive power tolerance, high mechanical strength, and a 30-year product and performance warranty, this panel is built for both commercial and utility-scale installations.
Key Features
-
595W rated power output (STC)
-
23.03% module efficiency, maximizing system energy yield
-
Bifacial double-glass construction for enhanced durability and rear-side energy gain
-
0~+5W positive power tolerance ensuring guaranteed output
-
Outstanding low irradiation performance, increasing production in weak light conditions
-
Self-cleaning anti-reflection glass to reduce surface dust and maintain efficiency
-
Certified mechanical load resistance: 5400 Pa snow / 2400 Pa wind
-
16BB half-cut cell design for improved current flow and reliability
Technical Specifications (595W Model)
-
Model: CWT595-144TNB10
-
Peak Power (Pmax): 595W
-
Maximum Power Voltage (Vmp): 43.55V
-
Maximum Power Current (Imp): 13.67A
-
Open Circuit Voltage (Voc): 51.58V
-
Short Circuit Current (Isc): 14.53A
-
Maximum System Voltage: 1500V DC
-
Operating Temperature: -40°C to +85°C
-
Temperature Coefficient (Pmax): -0.30%/°C
-
Module Dimensions: 2278 × 1134 × 30 mm (or 35 mm frame option)
-
Weight: 32 kg (30mm frame) / 33 kg (35mm frame)
-
Protection Class: Class II
Warranty
-
30-Year Product Warranty
-
30-Year Linear Performance Warranty
The CW Energy 595W module is ideal for projects seeking high efficiency, strong bifacial gains, and extended long-term performance assurance.
