Batteries ship from Kentucky. Freight shipping will be calculated per order, please call or email for freight shipping quote. (859) 428-7292 or info@mannsolar.com

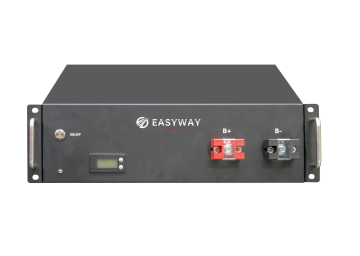

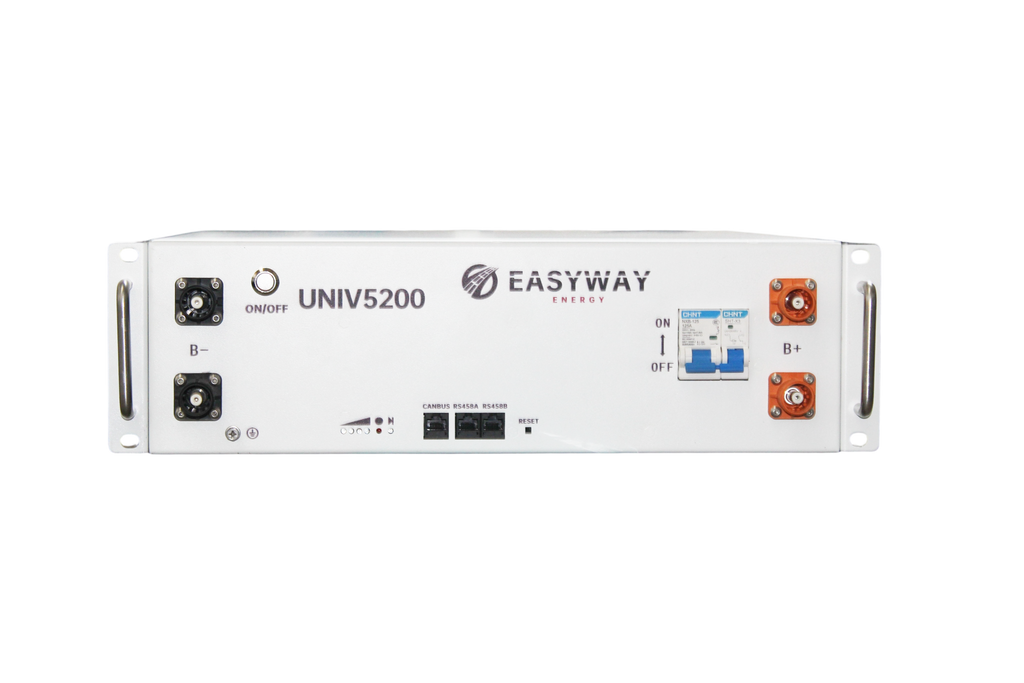

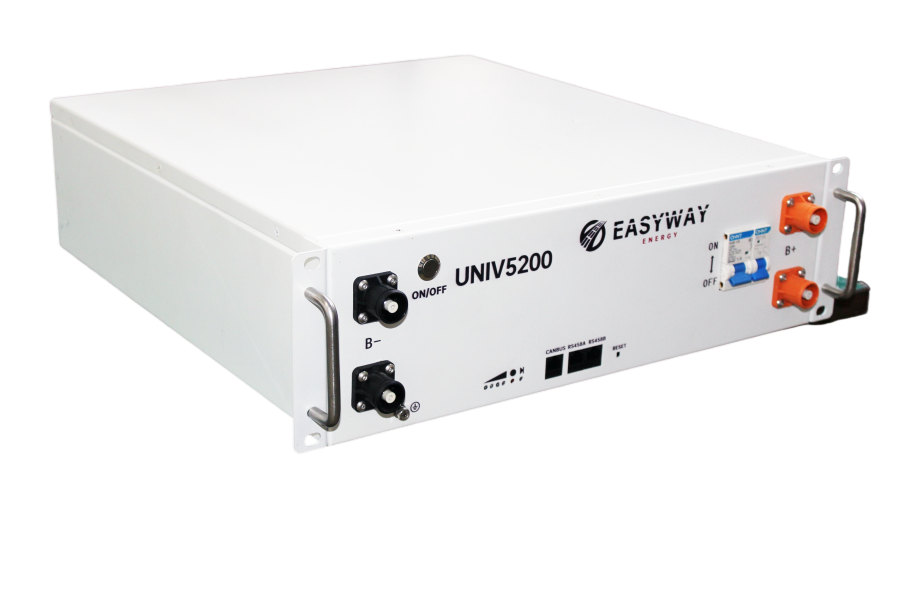

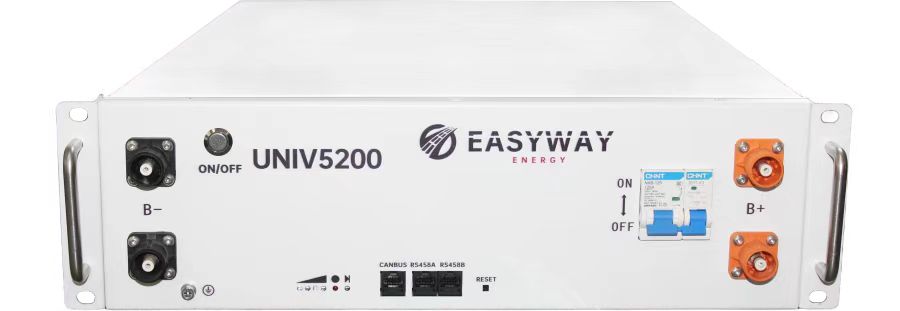

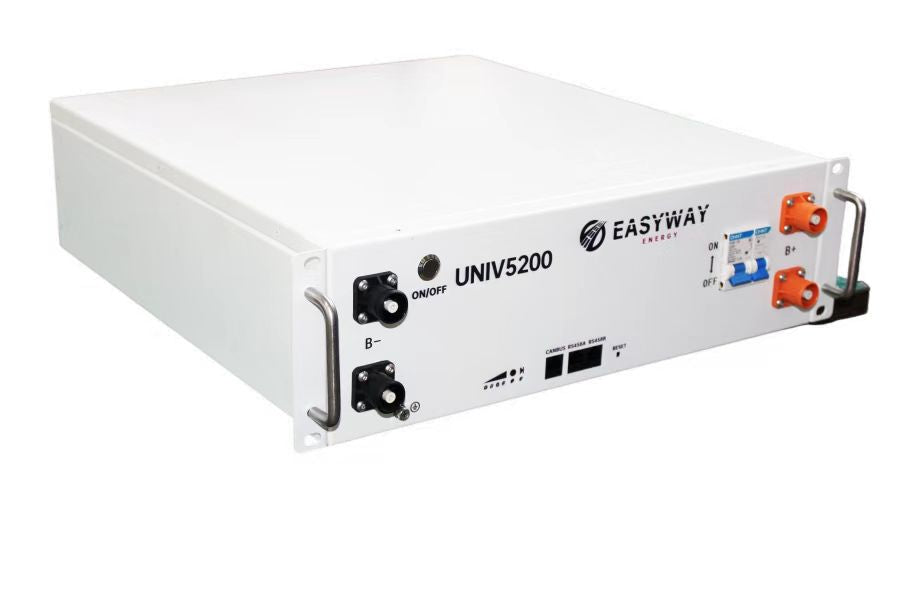

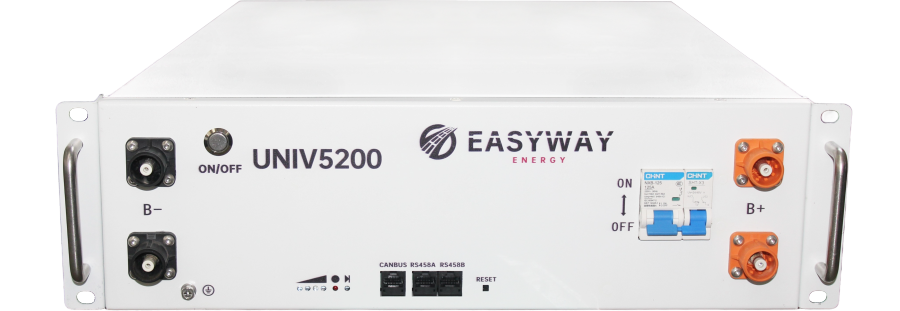

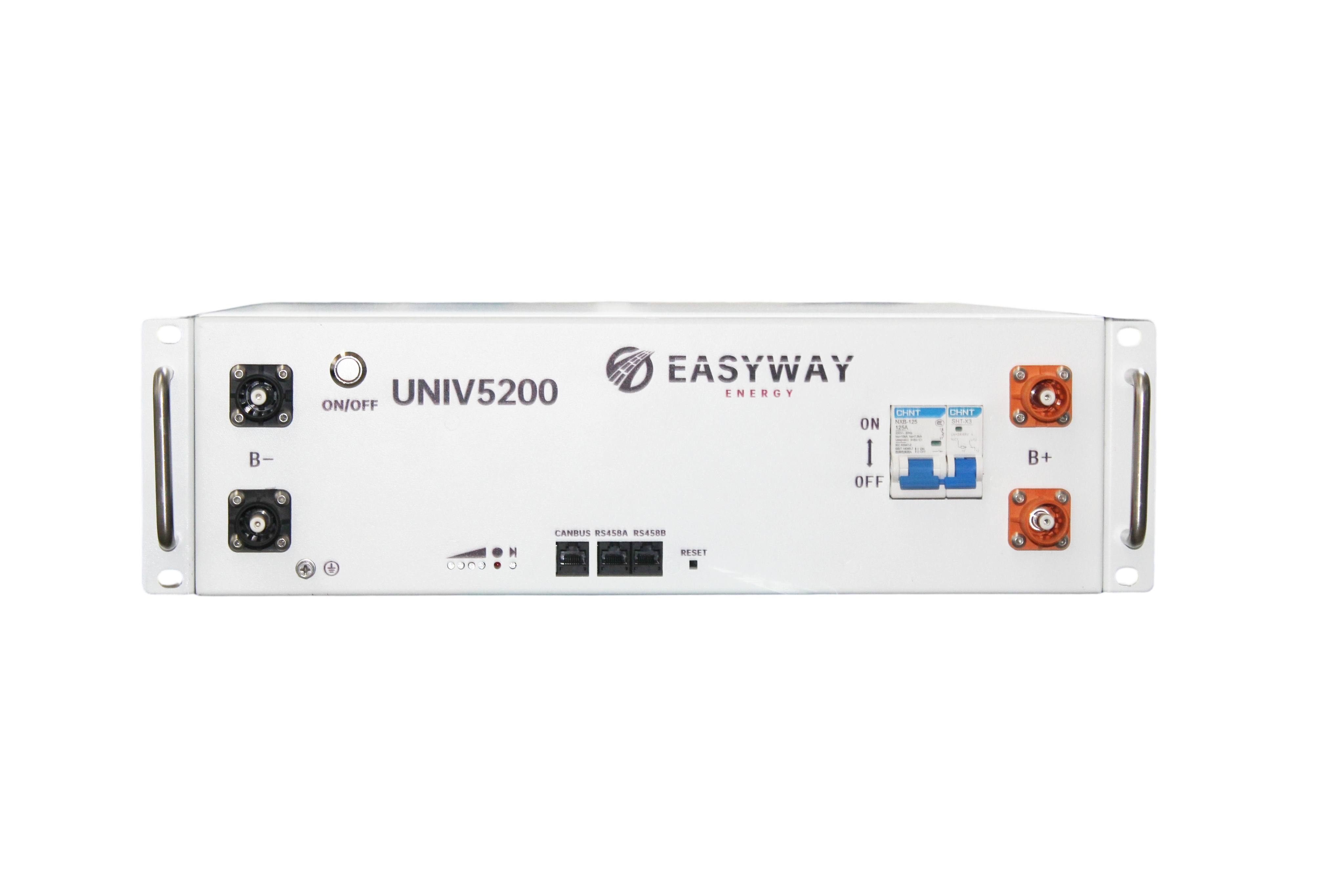

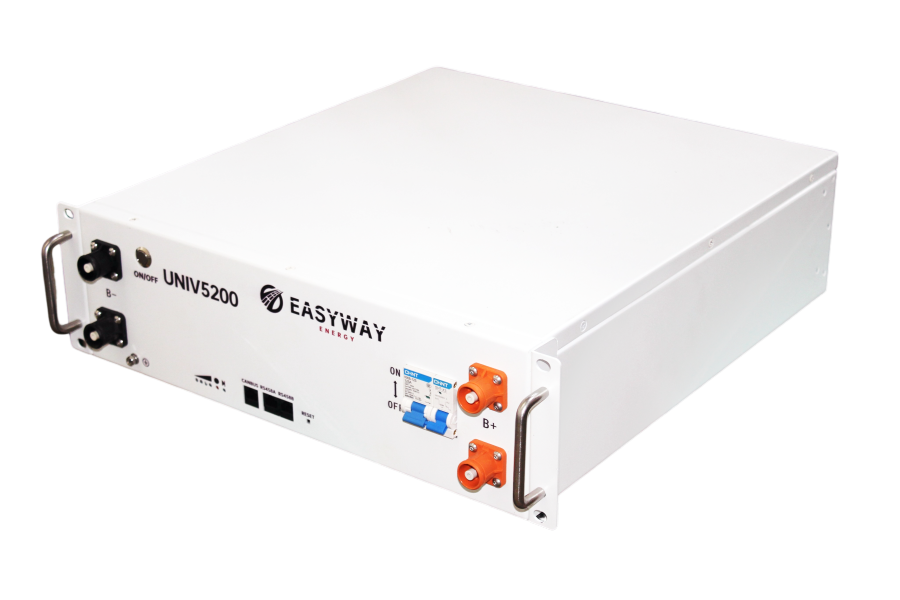

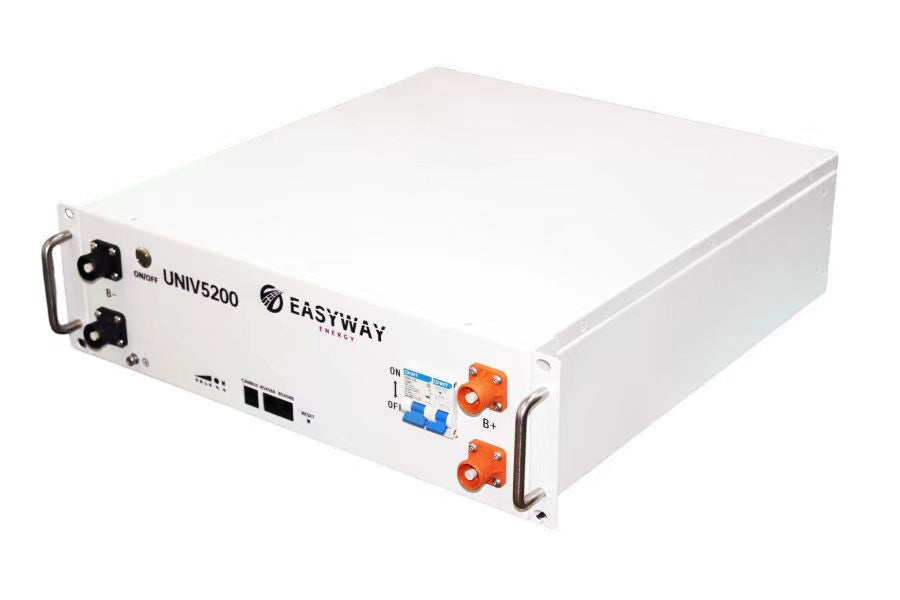

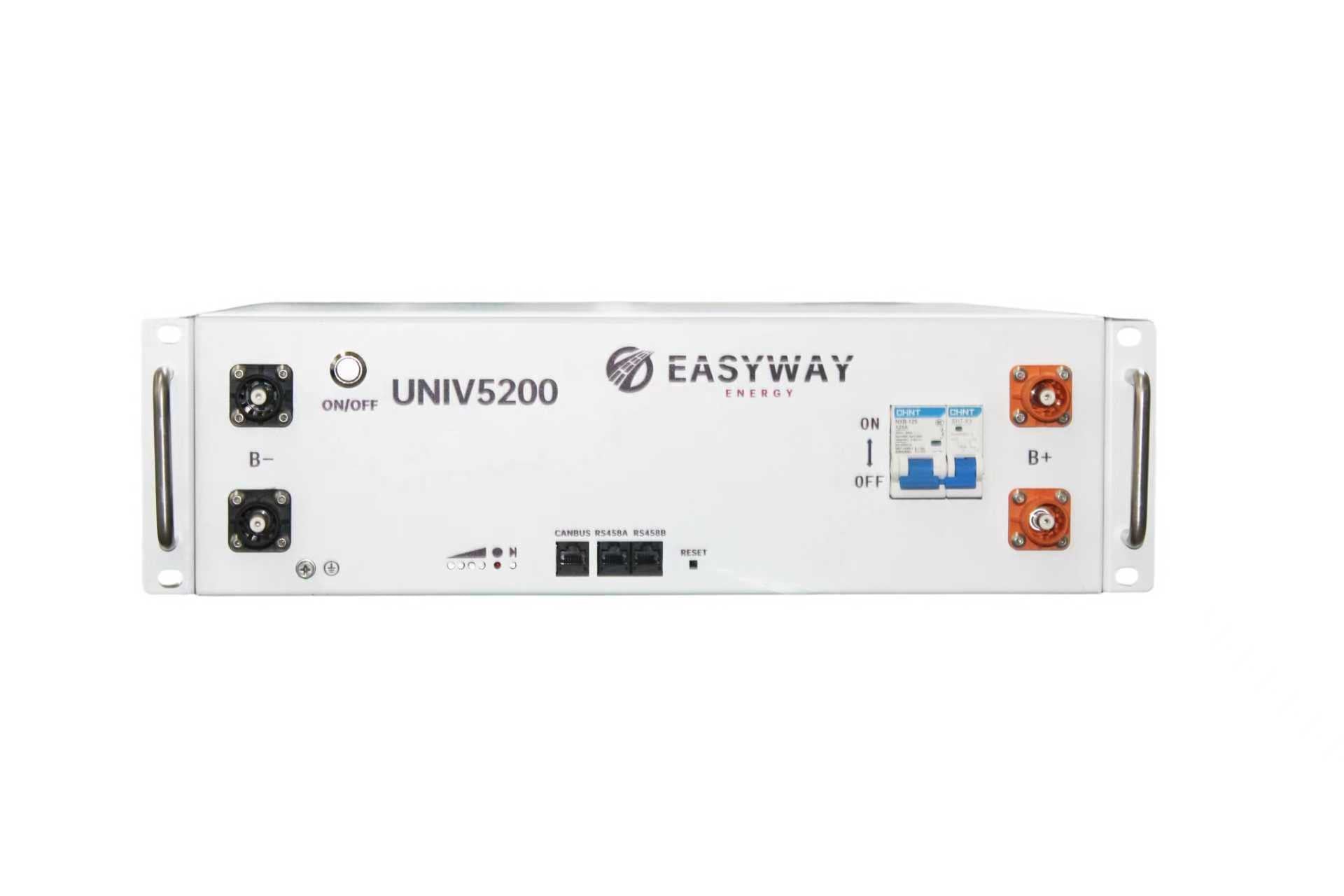

Rack-Mounted Lithium Battery – Eway Energy UNIV-5200I (5.12 kWh)
Store more. Save more. Stay powered longer.
Key Features & Benefits
-
Generous Energy Capacity
Total energy: 5.22 kWh • Usable (DC): 5.06 kWh – ideal for home solar backup or energy storage needs. -
Robust Performance & Longevity
Delivers 8,000 life cycles at 80% Depth of Discharge (DoD)†, with a design life exceeding 15 years at 25 °C. -
High Compatibility & Smart Connectivity
Works with low-voltage systems (48–51.2 V DC) and communicates via CANbus and RS485, ensuring smooth integration with leading inverter brands. -
Reliable, Maintenance-Free Cooling
Uses a natural cooling system—no fans, no noise, no dust intake—enhancing durability. -
Impressive Warranty & Safety
Backed by a 10-year warranty, plus CE, TUV, and UL-1973 certifications.

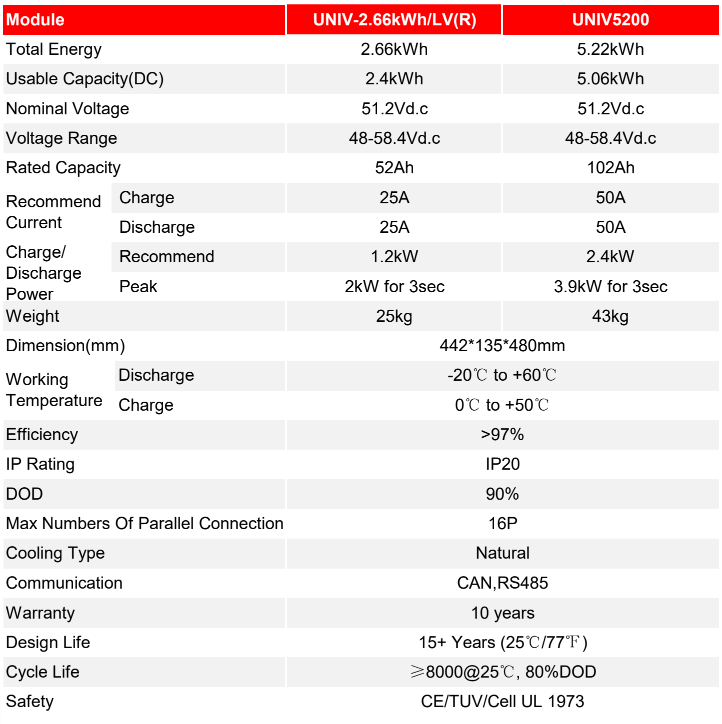

Technical Specifications
| Specification | Details |
|---|---|
| Total Energy | 5.22 kWh |
| Usable Energy (DC) | 5.06 kWh |
| Nominal Voltage | 51.2 V DC |
| Voltage Range | ~48–58.4 V DC |
| Cycle Life | ≥ 8,000 cycles @ 25 °C, 80% DoD |
| Depth of Discharge (DoD) | Up to 90% |
| Cooling Type | Natural convection |
| Communication | CANbus, RS485 |
| Installation Type | Rack-mounted, low-voltage format |
| Design Life | 15+ years (at 25 °C) |
| Warranty | 10 years |
| Safety Certifications | CE, TUV, UL-1973 |
Why Choose the UNIV-5200I?
-
Modular & Scalable – Connect multiple units (up to 16 in parallel) for higher capacity solutions.
-
Efficient & Silent Operation – Over 97% round-trip efficiency and passive cooling keep operations smooth and quiet.
-
Peace of Mind – Top-grade LiFePO₄ cells, strong warranty support, and reliable after-sales service from Eway Energy.
Shopify-Ready Title & Bullets
Title (Product Title):
UNIV-5200I (5.12 kWh) Rack-Mounted Lithium Battery – Eway Energy
Bullet Points (short & punchy):
-
5.06 kWh usable energy with 5.22 kWh total capacity
-
Long-lasting: 8,000 cycles, 15+ year lifespan
-
Natural convection cooling for quiet, maintenance-free reliability
-
Plug-and-play: compatible with CANbus & RS485 inverters
-
10-year warranty + CE/TUV/UL safety certified

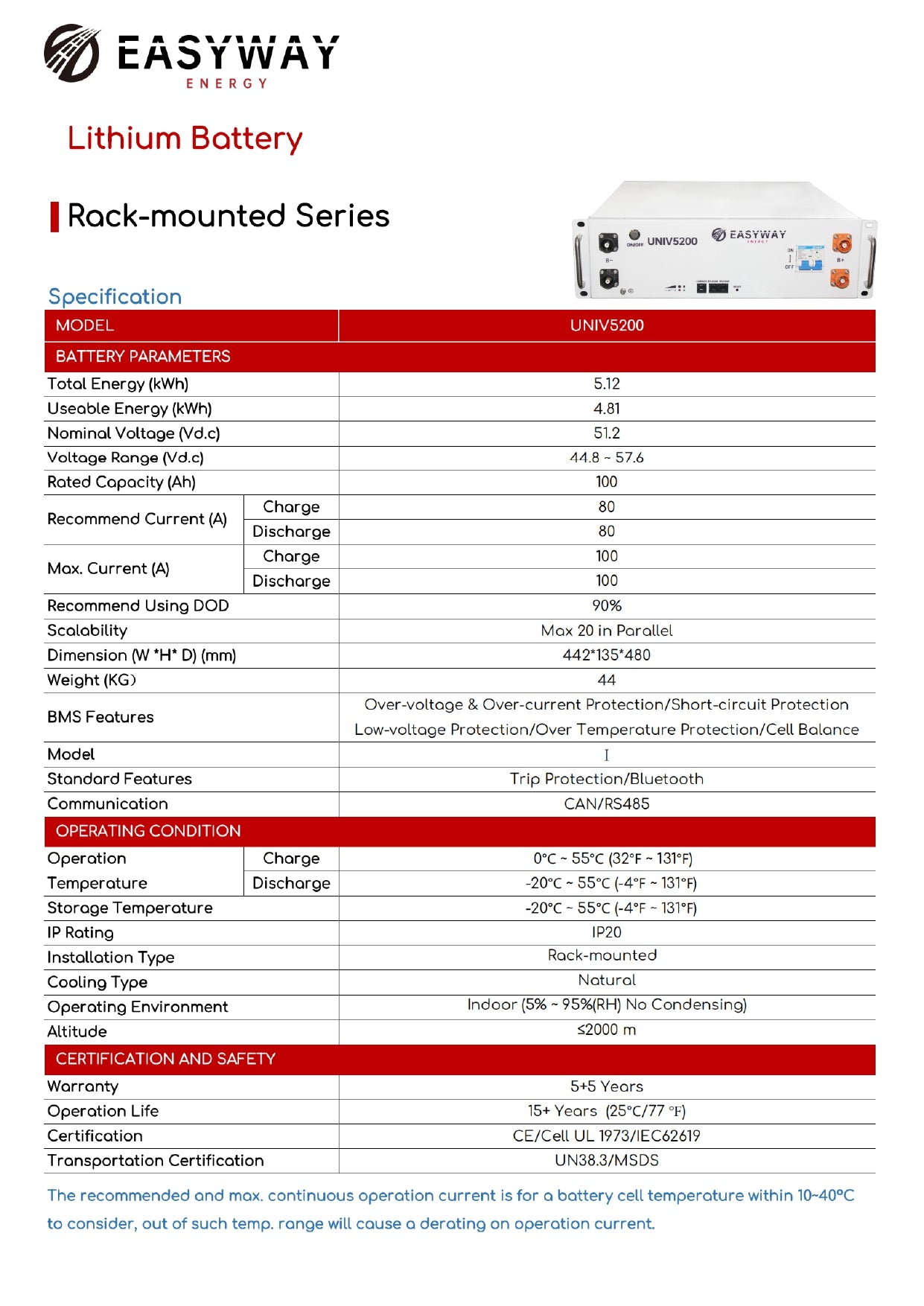

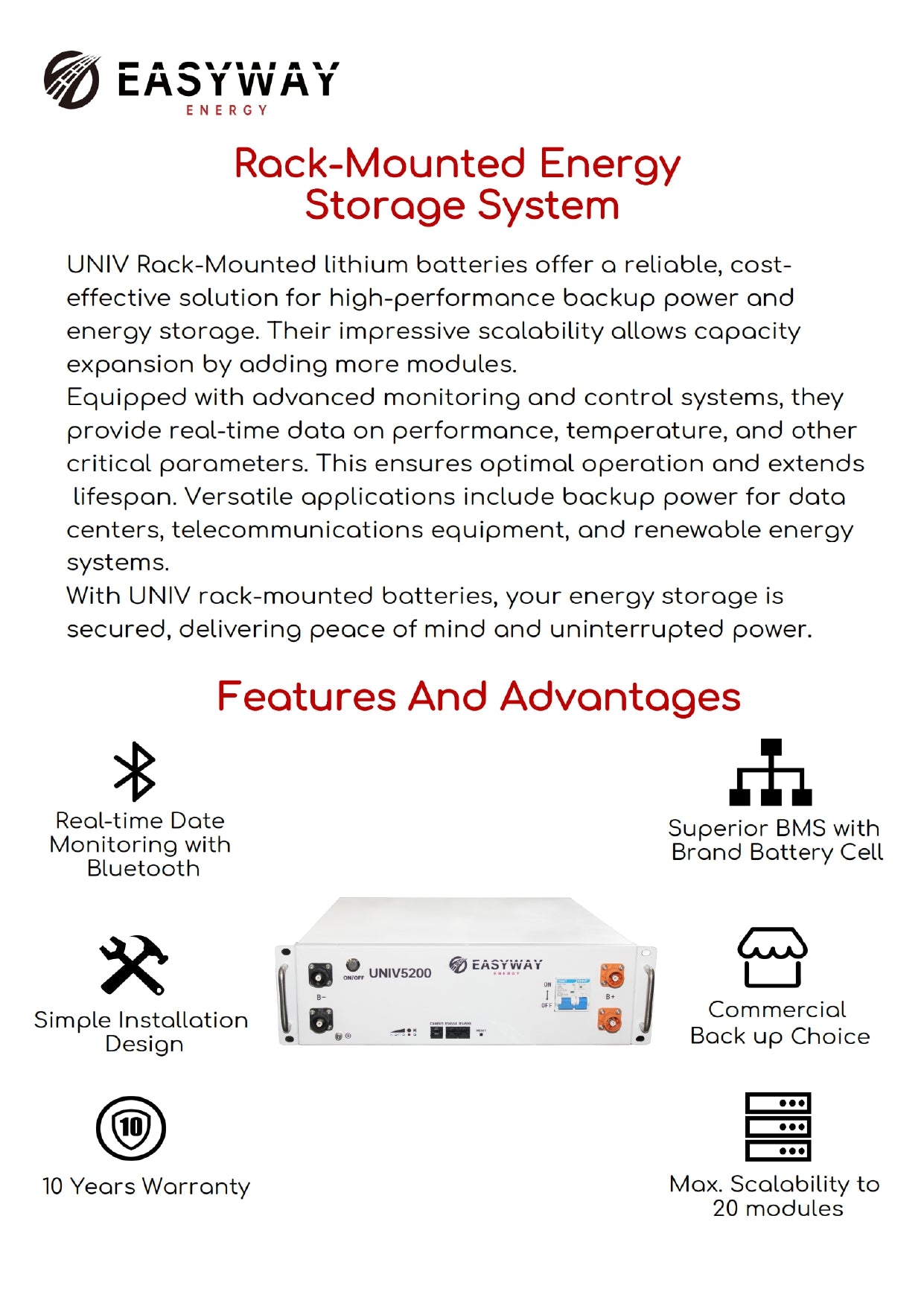

SEE SPECIFICATIONS HERE
