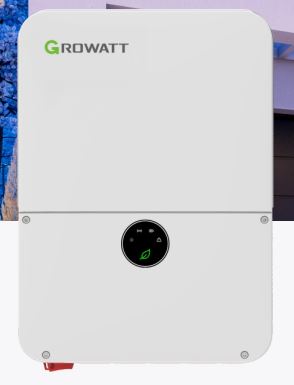

🔌 Growatt MIN11400TL‑XH‑US – 11,400 W Grid‑Tie + Hybrid Inverter
High-powered and versatile, this 11.4 kW inverter supports both grid-tied and battery-hybrid configurations—perfect for large residential or commercial systems seeking efficiency, backup capability, and advanced energy management.
⚙️ Key Features
-
11.4 kW continuous output, with 98.5 % peak efficiencyÂ
-
4 independent MPPTs, each accommodating 2 PV strings, for optimal energy harvest from multiple orientations
-
High PV Input Capacity: Supports up to 550 V max DC, and up to 22.8 kW PV array (DC/AC ratio 2.0)
-
Hybrid-Ready Backup & Dark Start: Enables whole-home backup when paired with Growatt batteries; dark-start feature ensures inverter startup without grid power
-
Robust Safety & Compliance: UL 1741 SA/SB, CA Rule 21, AFCI, RSD, rapid shutdown, anti-islanding; suitable for self-consumption, zero-export, time-of-use, and off-grid setups
-
Outdoor-Rated & Quiet: Fanless cooling, NEMA 4X / IP65-rated, built for –13 °F to +140 °F operation (–25 °C to +60 °C)
-
Smart Connectivity: Built-in 4G, Wi‑Fi, LAN, RS485; full integration with Growatt monitoring app and cloud services
-
Lightweight & Compact: Weighs ~45 lb (20.5 kg); dimensions 400 × 638 × 187 mm
đź“Ź Quick Specs
| Parameter | Specification |
|---|---|
| Nominal AC Output | 11,400 W @ 240 VAC, 208/240 V grid |
| Max PV Input Power | 22.8 kW |
| MPPT Voltage Range | 50–550 V |
| AC Output Current | Up to 48 A |
| Max Efficiency | 98.5% |
| Weight & Dimensions | 20.5 kg (45 lb); 400 × 638 × 187 mm |
đź“„ Official Datasheet
Download full specs, installation diagrams, and compliance certifications:
Growatt MIN 3000–11400TL‑XH‑US Datasheet (PDF)
