GRID TIE INVERTER | GROWATT | 7600W | MIN7600TL-XH-US

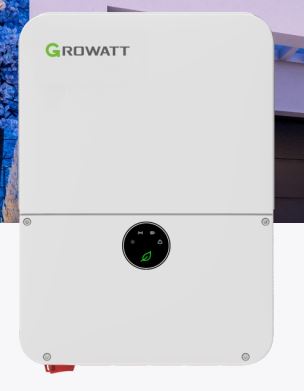

🔌 Growatt MIN 7600TL‑XH‑US – 7,600 W Grid‑Tie + Hybrid Inverter

A high-performance single-phase inverter that supports both grid-tied and backup-ready configurations, delivering superior efficiency and smart energy management.

⚙️ Key Features

• 7.6 kW continuous output, with up to 98.5 % peak efficiency.

• Hybrid-ready: Compatible with battery pairing (Growatt ARO/APX or SYN), supports DC- and AC-coupled architectures, partial or whole-home backup, and dark-start capability.

• 3 independent MPPTs supporting 2 strings each, efficient energy harvest from varied orientations.

• High DC input: Up to 500–600 V, DC/AC ratio up to 2.0.

• Advanced protections: Includes RSD, AFCI, rapid shutdown, surge suppression, anti-islanding; certified to UL1741SA/SB, IEEE1547, CA Rule 21, HECO.

• Rugged build: Fanless natural convection; NEMA 4X/IP65 rated; operating range –25 °C to +60 °C.

• Smart connectivity: Built-in Wi-Fi/4G/LAN, RS485; app-based monitoring and firmware updates.

📏 Quick Specs

• AC Output: 7.6 kW continuous @ 240 VAC (208/240 V range)

• DC Voltage Window: 50–550 V; up to 3 MPPT channels (3 x 2 strings)

• Efficiency: Up to 98.5%

• Dimensions & Weight: ~400 × 569 × 170 mm; 14.7 kg (32.3 lb)

• Warranty: Standard 10 years (extended options available)

📄 Official Datasheet
For detailed specs, wiring diagrams, and compliance certificates, download the Growatt MIN Series datasheet covering 3–7.6 kW models:
GROWATT MIN 3000–7600TL‑XH‑US Datasheet (PDF)
