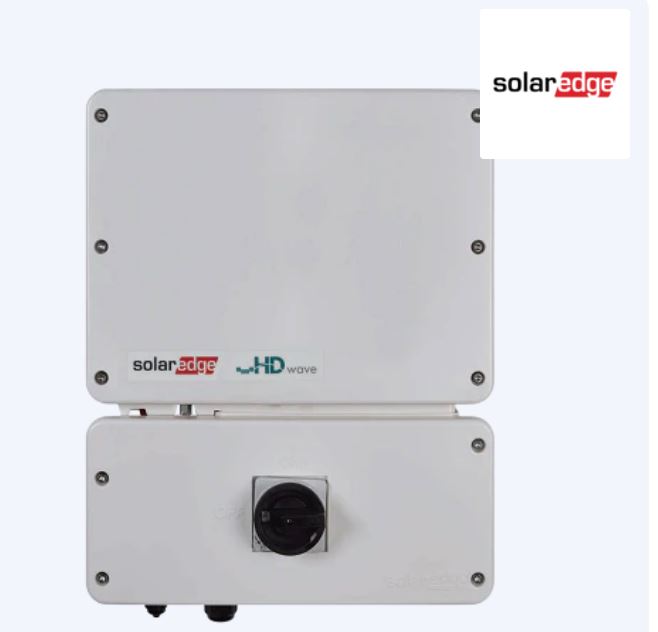

🔌 SolarEdge SE10000H‑US000BEU4 – 10,000 W HD‑Wave Single‑Phase String Inverter
Advanced inverter from SolarEdge’s HD‑Wave lineup—compact, efficient, and optimized for high-output residential PV systems with power optimizer support.
⚙️ Key Features
-
10 kW continuous AC output @ 240 VAC, 42 A max, built for residential solar systems.
-
Record efficiency: up to 99.2 % peak, 99 % CEC-weighted, with <2.5 W night-time standby.
-
Fixed DC voltage design supports up to 15.5 kW DC input (200 %, from optimizers).
-
Compact & silent: fanless cooling (<50 dBA), lightweight (≈17.6 kg/38.8 lb), IP65/NEMA 4X rating.
-
Enhanced safety: includes integrated AFCI, rapid shutdown, ground-fault isolation, anti‑islanding, UL1741 SA/SB, IEEE 1547, NEC 690.12 compliance.
-
Smart commissioning & monitoring: SetApp smartphone setup via Wi‑Fi hotspot; optional RS485, ethernet, ZigBee, cellular connectivity.
📏 Quick Specs
-
AC Output: 10,000 VA @ 240 VAC, 42 A continuous
-
DC Input Capacity: Max input 15.5 kW; Voc up to 480 V; IDC max 27 A
-
Physical: 21.3″ × 14.6″ × 7.3″ (535 × 370 × 185 mm); 38.8 lb (17.6 kg)
📄 Official Datasheet
Download the full HD‑Wave single-phase inverter datasheet:
SolarEdge HD‑Wave Single‑Phase Inverter Datasheet (PDF)
