Description

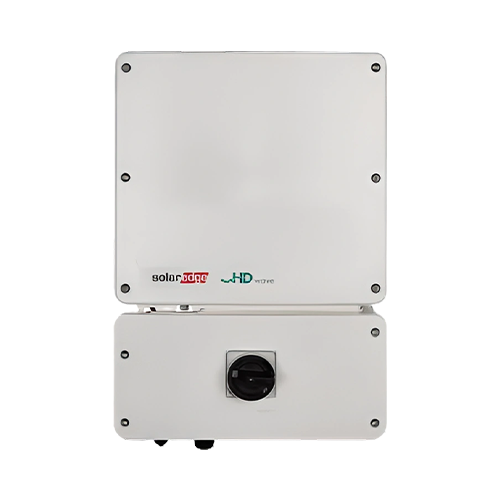

🔌 SolarEdge SE3800H‑US00BNC4 – 3,800 W HD‑Wave Grid‑Tie + Backup Inverter
High‑performance single‑phase inverter from SolarEdge’s Home Hub HD‑Wave series, designed for residential PV systems with optional backup capability.
⚙️ Key Features
- 3.8 kW AC output @ 240 VAC (3.3 kW @ 208 VAC) with up to 99% weighted efficiency and <2.5 W night-time consumption.
- Compact, fanless design with natural convection cooling; ultra‑quiet operation ≤ 25 dBA; NEMA 4X/IP65 weatherproof enclosure.
- Backup‑ready (“Home Backup”): supports up to 3 SolarEdge Home or LG RESU batteries; provides whole‑home backup power during outages.
- Integrated revenue‑grade consumption monitoring (ANSI C12.20 Class 0.5) for accurate production and usage tracking.
- Advanced safety features: rapid shutdown (NEC 690.11/12), AFCI, anti‑islanding, UL1741 SA/SB, IEEE 1547‑2018, and California Rule 21 compliant.
- Flexible PV input: up to 4.65 kW DC, max Voc 480 V; supports 1–2 strings.
- Smart connectivity & easy setup: built‑in Wi‑Fi, Ethernet, RS485, and SolarEdge SetApp commissioning.
📏 Quick Specs
- Nominal AC Power: 3,800 VA @ 240 VAC
- Max Efficiency: 99.2%
- Dimensions: 535 × 370 × 174 mm
- Weight: 20.3 kg (≈44.9 lb)
- Operating Temperature Range: −40 °C to +60 °C
- Noise Level: < 25 dBA
📄 Official Datasheet: Download the SolarEdge Home Hub Inverter Datasheet (PDF)
