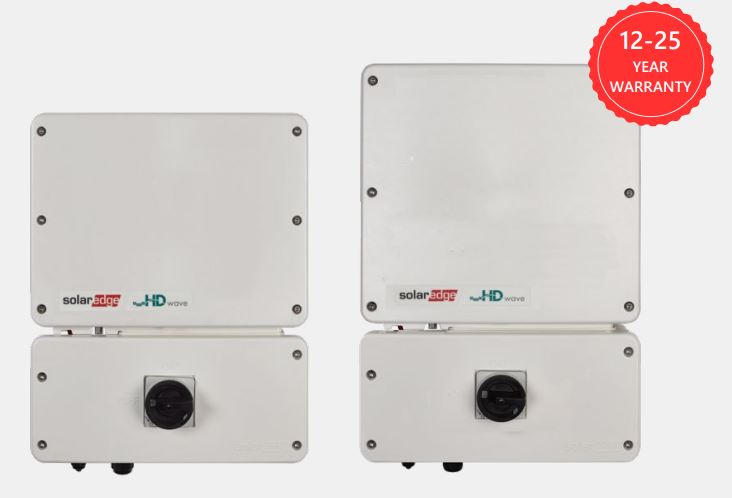

🔌 SolarEdge SE5000H‑US000CBNN4 – 5,000 W HD‑Wave Grid‑Tie Inverter
Advanced single-phase string inverter utilizing SolarEdge’s HD‑Wave technology—engineered for high efficiency, small size, and seamless compatibility with power optimizers.
⚙️ Key Features
-
5 kW AC output @ 240 VAC; supports both 208 VAC and 240 VAC systems with high performance.
-
Record-setting efficiency: up to 99.2% max, 99% weighted CEC efficiency reduces energy loss.
-
Lightweight and compact: Only ~11.4 kg (25.1 lb) and measuring 450 × 370 × 174 mm.
-
Fanless, ultra-quiet operation: airflow-cooled (<25 dBA), ideal for home installations.
-
Built-in safety features: Negative-gone rapid shutdown, AFCI, ground fault detection, anti-islanding; fully UL 1741 SA/SB, IEEE 1547-2018, and NEC 690.12 compliant.
-
Fixed DC voltage with optimizer support: Handles up to 7.75 kW DC input from optimizers; permits up to 155% module oversizing.
-
Smart commissioning & monitoring: Wi‑Fi, Ethernet, RS485 connectivity and simplified smartphone setup via SolarEdge SetApp.
-
Outdoor-rated: NEMA 4X/IP65 enclosure, operational from −40 °C to +60 °C.
📏 Quick Specs
-
AC Output: 5,000 VA @ 240 VAC; 21 A max continuous
-
DC Input Power: Up to 7,750 W
-
Efficiency: Max 99.2%, CEC-weighted 99%
-
Dimensions: 450 × 370 × 174 mm
-
Weight: 11.4 kg (25.1 lb)
-
Noise Level: <25 dBA
📄 Official Datasheet
Download the full technical specs and certification details for the SE5000H (and HD‑Wave series 3–11.4 kW):
SolarEdge HD‑Wave Single‑Phase Inverter Datasheet (PDF)
