Description

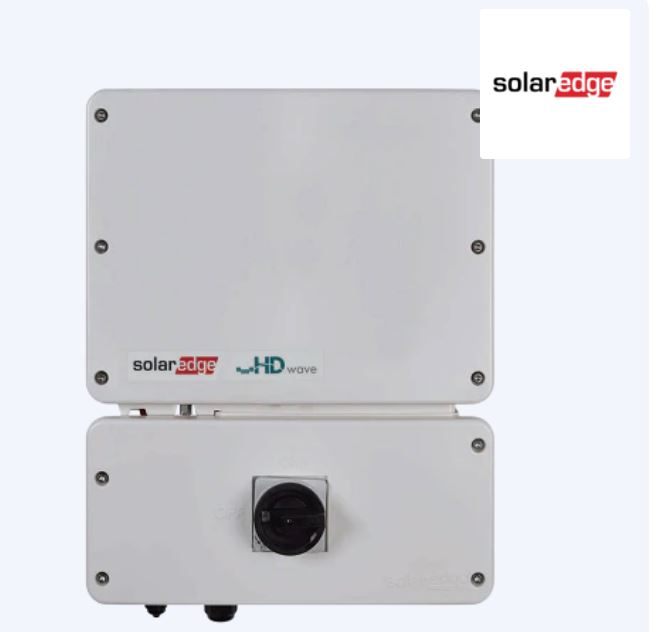

🔌 SolarEdge SE6000H‑US000BNU4 – 6 kW HD‑Wave Grid‑Tie + Backup Inverter
Top-tier single-phase inverter from SolarEdge’s Home Hub/HD‑Wave series—offering high efficiency, backup capability, and advanced system monitoring.
⚙️ Key Features
-
6,000 W AC output @ 240 VAC (5,000 W @ 208 VAC) with 99.2% max efficiency and ultra-low standby power (< 2.5 W).
-
Designed for power optimizers, supports 200% DC oversizing for added system flexibility.
-
Quiet, fanless operation (≤ 25 dBA), with NEMA 4X/IP65 housing—ideal for indoor or outdoor installations.
-
Backup-ready (Home Hub): capable of full-home backup when paired with compatible batteries, and supports EV charging via integrated output.
-
Revenue-grade monitoring included; features AFCI, rapid shutdown, anti-islanding, compliant with UL1741 SA/SB, NEC 690.12, and IEEE 1547-2018.
-
Flexible PV input: up to 7.75 kW DC from 2 strings, max Voc 480 V, nominal 380 V.
-
Smart commissioning via SetApp and built-in Wi‑Fi; supports Ethernet, RS485, ZigBee or cellular modules.
📏 Quick Specs
-
AC Output: 6,000 VA @ 240 VAC | Efficiency: max 99.2%, CEC-weighted 99%
-
Operating Temp: −40 °C to +60 °C; Noise: < 25 dBA
📄 Official Datasheet
Download the full datasheet via the correct source:
SolarEdge Home Wave Single‑Phase Inverter Datasheet (PDF)
