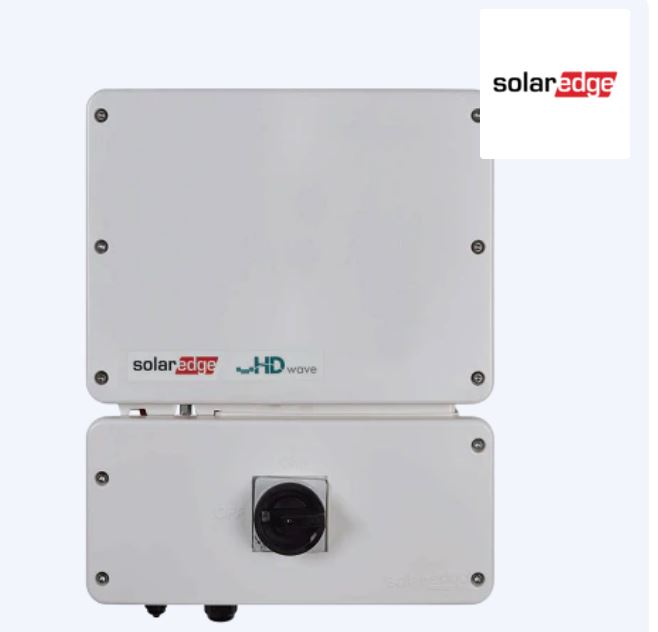

🔌 SolarEdge SE7600H‑US000BNU4 – 7,600 W HD‑Wave Grid‑Tie Inverter
High-efficiency, compact single-phase inverter from SolarEdge’s HD‑Wave lineup—designed for residential and small commercial installations with streamlined setup and superior safety.
⚙️ Key Features
-
7.6 kW continuous AC output @ 240 VAC (6.6 kW @ 208 VAC), matching home energy needs with high capacity.
-
Ultra-efficient: 99.2% peak, 99% CEC-weighted efficiency; night-time draw <2.5 W.
-
Supports power optimizers & 200% DC oversizing for greater PV-to-load flexibility.
-
Noise-free, fanless design with compact size (<25 lb/11.4 kg); IP65-rated enclosure for versatile mounting.
-
Advanced safety features: AFCI, rapid shutdown, GFDI, anti-islanding, UL1741 SA/SB, IEEE 1547, NEC 690.12 compliant.
-
Smart setup via SetApp, with built-in Wi‑Fi, RS485/Ethernet connectivity.
đź“Ź Quick Specs
-
AC Output Power: 7,600 VA @ 240 VAC; up to 32 A continuous.
-
Max DC Input: 11,800 W; Voc max 480 V; IDC max 20–32 A.
-
Efficiency: 99.2% peak; 99% weighted.
-
Dimensions / Weight: ~450 × 370 × 174 mm; 11.4 kg (25.1 lb).
-
Operating Temp & Noise: –40 °C to +60 °C; <25 dBA.
đź“„ Official Datasheet
Download full technical specs here:
SolarEdge HD‑Wave Single‑Phase Inverter Datasheet (PDF)
