Description

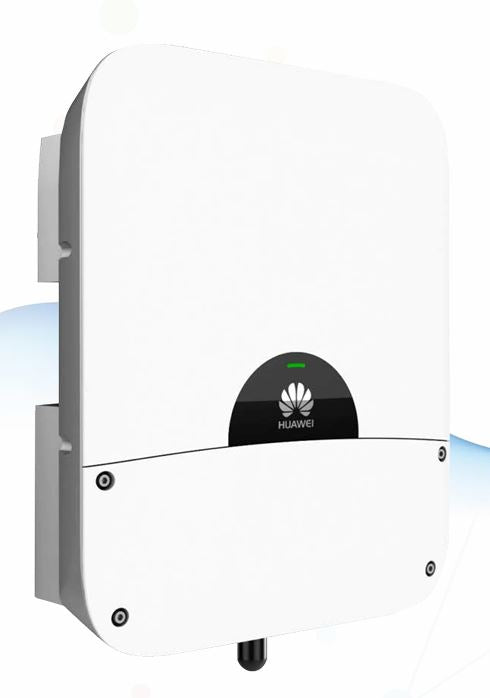

The Huawei SUN2000-7.6KTL-USL0 is a high-efficiency residential and light commercial string inverter designed to deliver strong performance, advanced safety features, and future-ready energy storage compatibility. As part of Huawei’s Smart Energy Center lineup, this inverter combines high conversion efficiency, smart monitoring, and a clean single-box design for easier installation and long-term reliability.
Built for modern PV systems, the 7.6KTL-USL0 is optimized for PV + storage applications, supports rapid shutdown requirements, and includes integrated protection features that help improve safety and code compliance.
Key Features
✔ 7.6 kW rated output power at 240 Vac
✔ 99% maximum efficiency and 99% CEC weighted efficiency
✔ Battery-ready design for future storage expansion
✔ Supports rapid shutdown in compliance with NEC 2014 and 2017
✔ AFCI compliant to UL 1699B for enhanced arc fault protection
✔ Type 4X / IP65 enclosure for outdoor installation
✔ Natural convection cooling with no fans for quieter operation and reduced maintenance
✔ Supports RS485, WLAN, and optional 4G communication
Electrical Specifications
- Model: SUN2000-7.6KTL-USL0
- Recommended DC power: 10,260 Wp
- Maximum input voltage: 500 Vdc
- Rated input voltage: 370 Vdc
- Number of inputs: 3
- Maximum input current: 15 A × 3
- Rated AC output power: 7.6 kW @ 240 V
- Maximum output current: 31.7 A
- Rated output voltage: 208 Vac / 240 Vac
- Rated AC grid frequency: 60 Hz
Physical Specifications
- Weight: 39.7 lb (18.0 kg)
- Dimensions: 15.8 × 22.4 × 6.3 in (400 × 570 × 160 mm)
- Operating temperature range: -22°F to 140°F (-30°C to 60°C)
- Noise emission: < 25 dB(A)
- Display: LED indicators
Backup & Battery Compatibility
- Rated continuous backup output power: 3.5 kVA @ 240 V
- Peak backup output power: 5 kVA for 10 seconds @ 240 V
- Compatible with LG Chem RESU 10H (Type-R) according to the datasheet.
Why Choose Huawei SUN2000?
The Huawei SUN2000-7.6KTL-USL0 is a strong choice for installers and homeowners looking for a smart, efficient, and storage-ready inverter with integrated safety features, quiet operation, and advanced communications in a compact design.
