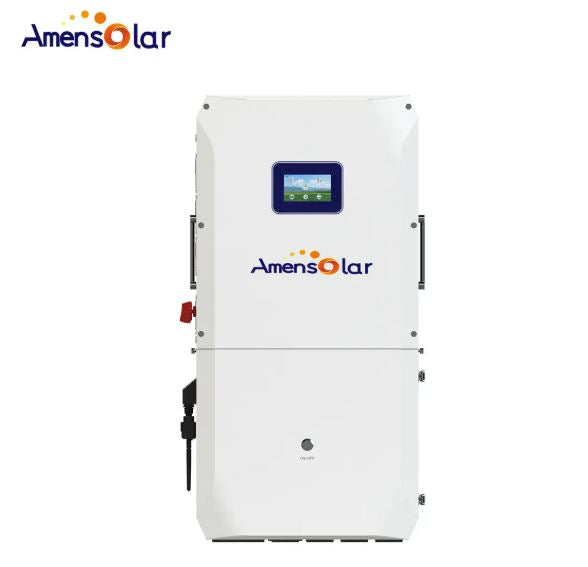

🔌 Amensolar N3H‑X12US – 12 kW Split‑Phase Hybrid Inverter (US Model)
High-capacity hybrid inverter designed for North American markets, compatible with 120/240 V split-phase, 208 V, and 230 V systems—ideal for solar + battery + generator backup installations.
⚙️ Key Features
-
12 kW continuous AC output, 13.2 kVA apparent power (up to 55 A per phase) with <3% THDi and 0.8 leading/lagging power factor.
-
4 independent MPPTs, supports up to 18 kW PV input (200% DC oversizing), max Voc 500 V, MPPT voltage range 120–430 V.
-
48 V battery input, handles Li-ion or lead-acid (40–58 V), up to 250 A charge / 260 A discharge current.
-
Backup output: provides full 12 kVA during outages; 200 A grid pass-through support.
-
High efficiency: MPPT 99.9%, PV-to-grid 96.5%, PV-to-battery 95.8%, Battery-to-load 94.6%.
-
Built-in safety & utility functions: Arc-fault, island protection, grounding detection, residual current monitoring, rapid shutdown, UL1741 SA, UL1699B, CSA, IEEE 1547, NEC 690.12, California Rule 21, FCC Part 15, Phase I–III.
-
Sturdy design: IP65/NEMA 3R, fan-cooled, 120-day split-phase rating, operating –25 °C to +60 °C, 53 kg (56 kg w/breaker), dimensions 495×900×260 mm.
-
Smart connectivity & monitoring: RS485, CAN, optional Wi‑Fi/4G, remote monitoring via Solarman App; touchscreen interface; supports up to 3 inverters in parallel.
📏 Quick Specs
-
AC Power: 12 kW continuous / 13.2 kVA peak
-
PV Input: 18 kW max, 4 MPPTs, Voc ≤500 V
-
Battery: 48 V, 250 A charge/260 A discharge
-
Backup: 12 kVA, 200 A passthrough
-
Efficiency: MPPT 99.9%, PV→Grid 96.5%
-
Protection: UL1741 SA/SB, IEEE1547, AFCI etc.
-
Weight/Size: ~53 kg, 495×900×260 mm
-
Enclosure: IP65, –25 °C to +60 °C
📄 Official Datasheet
Download the complete technical details here:
Amensolar N3H‑X12US Hybrid Inverter Datasheet (PDF)
