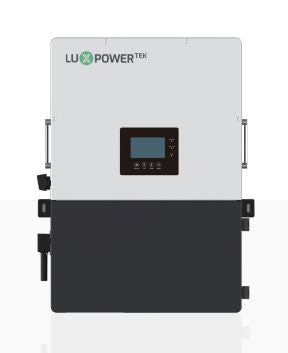

🔌 Luxpower LXP‑LB‑US‑8K – 8,000 W Split‑Phase Hybrid Inverter
A robust, all‑in‑one hybrid inverter ideal for residential solar + battery installations, with flexible modes, high performance, and UPS backup.
⚙️ Key Features
-
8 kW continuous AC output @ 120/240 VAC (33.3 A @ 240 VAC, 38.5 A @ 208 VAC) – supports full UPS backup.
-
Dual MPPTs accepting 4 strings (2 each), allows up to 15 kW PV input (200 % DC oversizing).
-
Battery-ready: Works with Li-ion or Lead‑Acid (48 V nominal; 40–60 V range); max charge/discharge 25 A / 31 A.
-
Plug-and-play UPS: seamless grid-to-backup transition under 20 ms with integrated breakers and EPS support.
-
Advanced safety & compliance: UL 1741 SB, CSA, IEEE 1547, NEC 690.12, AFCI, rapid shutdown, anti-islanding.
-
User-friendly: Color touchscreen + RS485/Wi‑Fi/CAN communication; supports parallel expansion (up to 10 units).
-
Durable design: IP65/NEMA 4X housing; natural fan‑cooled; operates –25 °C to +60 °C; weighs 50 kg (110 lb); dimensions 520 × 750 × 285 mm.
đź“Ź Quick Specs
| Spec | Value |
|---|---|
| AC Output Power | 8,000 W @ 240 VAC |
| Max PV Input | 15,000 W |
| MPPTs | 2 (4 strings) |
| Battery Voltage | 48 V (40–60 V) |
| Charge/Discharge Current | 25 A / 31 A |
| Efficiency | MPPT 99.9% / Inverter 97.5% |
| UPS Backup Transition | <20 ms |
| Protection Rating | IP65 / NEMA 4X |
| Weight & Dimensions | 50 kg; 520×750×285 mm |
| Operating Temp | –25 °C to +60 °C |
đź“„ Official Datasheet & Manual
Access the full technical specifications, user manual, and wiring details:
Luxpower LXP‑LB‑US‑8K/10K Datasheet (PDF)
