HYBRID INVERTER | TIGO | 7600W | TSI-7.6K-US

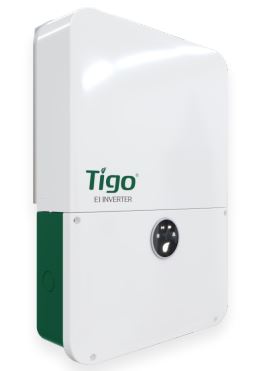

🔌 Tigo TSI‑7.6K‑US – 7.6 kW Hybrid Grid‑Tie + Battery Inverter (Energy Intelligence Series)

Powerful hybrid inverter natively integrated with Tigo’s Energy Intelligence (EI) platform—perfect for solar setups that combine PV generation, module-level optimization (TS4), and battery backup.

⚙️ Key Features

• 7.6 kW continuous AC output @ 240 VAC (6.6 kW @ 208 VAC), with 9.12 kW backup surge capacity.

• Storage‑ready & versatile: supports PV-grid tie, off-grid, battery backup, and peak-shaving modes.

• 200 % DC oversizing: up to 15.2 kW PV input from 3 MPPTs (each supports 2 strings); start-up voltage as low as 50 V.

• Integrated module-level monitoring & rapid shutdown via Tigo TS4 MLPE + single TAP.

• High efficiency: up to 98.4% peak, backed by CEC tests.

• Built-in communications: Wi‑Fi standard, Ethernet; optional cellular and RS‑485; fast setup with EI App.

• Rugged design: 14.7 kg (32.3 lb), NEMA 4X/IP65-rated, operating range −25 °C to +60 °C.

• Extended warranty: 152 months (~12.7 years).

📏 Quick Specs

• Nominal AC Output: 7,600 W @ 240 VAC

• Backup Surge: 9,120 W peak

• Max PV Input: 15.2 kW DC

• Max DC Voltage: 600 V

• MPPTs: 3 (2 strings each)

• Efficiency: 98.4% max

• Weight: 14.7 kg (32.3 lb)

• Enclosure: NEMA 4X/IP65

📄 Official Datasheet
For full technical specifications, wiring diagrams, and certifications, including 3.8/7.6/11.4 kW models:
Tigo EI Inverter (7.6/11.4 kW) Datasheet (PDF)
