🔥 SPECIAL PALLET PRICING — LIMITED STOCK 🔥
405W JA Solar Panels
- 12 Pallets Available
- $2,635 per pallet
- 31 panels per pallet
- $85 per panel
- Approximately 21.0¢/W
- Freight shipping calculated per order
For a freight shipping quote, please call or email:
859-428-7292 | info@mannsolar.com
📄 Product Datasheet
Download Datasheet (PDF)
Note: The manufacturer's datasheet covers the full JAM54D30 390–415/MB Series wattage range. The panels offered in this listing are the 405W model.

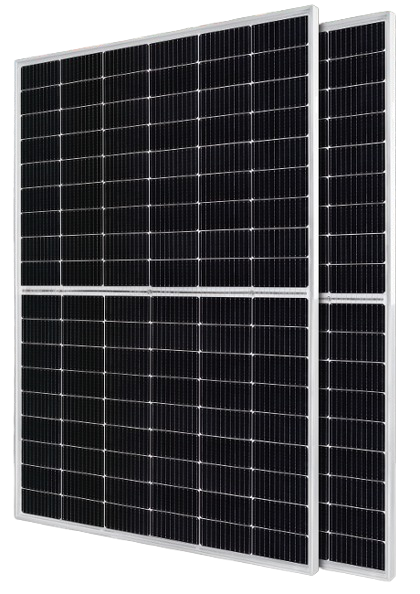

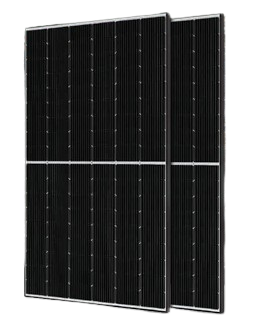

The JA Solar JAM54D30 405W/MB is a high-performance bifacial Mono PERC half-cell double-glass solar module designed to deliver reliable power generation, enhanced durability, and stable long-term performance. It is part of JA Solar's DeepBlue 3.0 series and is assembled with 11BB bifacial PERC cells in a half-cell configuration.
The bifacial design allows the module to convert light received from both the front and rear sides into electricity, helping provide higher output power and improved energy generation depending on installation conditions. The double-glass construction provides enhanced durability and mechanical load tolerance.
Key Features
✔ 405W rated power output
✔ Bifacial Mono PERC technology for energy generation from both front and rear sides
✔ Half-cell configuration with 108 cells (6 × 18)
✔ 11BB cell technology
✔ Double-glass construction for enhanced durability and mechanical load tolerance
✔ Bifaciality of 70% ± 10%
✔ Lower temperature coefficient for improved performance under higher temperatures
✔ 12-year product warranty
✔ 30-year linear power output warranty
✔ 0.45% annual degradation over 30 years
Electrical Specifications — 405W Model
-
Series: JAM54D30 390–415/MB
-
Model Listed: JAM54D30-405/MB
-
Rated Maximum Power (Pmax): 405W
-
Open Circuit Voltage (Voc): 37.23V
-
Maximum Power Voltage (Vmp): 31.21V
-
Short Circuit Current (Isc): 13.87A
-
Maximum Power Current (Imp): 12.98A
-
Module Efficiency: 20.7%
-
Power Tolerance: 0 to +5W
-
Temperature Coefficient of Isc: +0.045%/°C
-
Temperature Coefficient of Voc: -0.275%/°C
-
Temperature Coefficient of Pmax: -0.350%/°C
-
STC: Irradiance 1000 W/m², cell temperature 25°C, AM1.5G
Mechanical & Environmental Specifications
-
Cell Type: Mono
-
Number of Cells: 108 (6 × 18)
-
Dimensions: 1722 ± 2 × 1134 ± 2 × 35 ± 1 mm
-
Weight: 26 kg
-
Front Glass / Back Glass: 2.0 mm / 2.0 mm
-
Cable Cross Section Size: 4 mm² (IEC), 12 AWG (UL)
-
Junction Box: IP68, 3 diodes
-
Connectors: QC 4.10-35I / MC4-EVO2A
-
Cable Length Including Connector:
- Portrait: 200 mm (+) / 300 mm (-)
- Landscape: 1100 mm (+) / 1100 mm (-)
-
Maximum System Voltage: 1500V DC
-
Operating Temperature: -40°C to +85°C
-
Maximum Series Fuse Rating: 30A
-
Maximum Static Load, Front: 5400 Pa (112 lb/ft²)
-
Maximum Static Load, Back: 2400 Pa (50 lb/ft²)
-
NOCT: 45 ± 2°C
-
Bifaciality: 70% ± 10%
-
Fire Performance: UL Type 29
-
Packaging: 31 pcs/pallet; 806 pcs/40HQ container
Certifications
- IEC 61215
- IEC 61730
- UL 61215
- UL 61730
- ISO 9001:2015 Quality Management Systems
- ISO 14001:2015 Environmental Management Systems
- ISO 45001:2018 Occupational Health and Safety Management Systems
-
IEC 62941:2019 – Quality System for PV Module Manufacturing
The JA Solar JAM54D30 405W/MB is designed for customers seeking a 405W bifacial solar module with reliable power generation, double-glass durability, high mechanical load tolerance, and long-term performance.
