MICROINVERTER | ENPHASE | IQ8HC-72-M-US

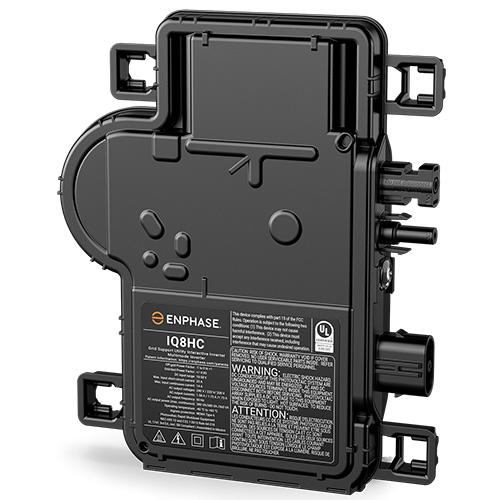

🔌 Enphase IQ8HC Microinverter – Up to 384 VA Peak (Grid‑Forming)

Top-tier microinverter from Enphase’s IQ8 Series — software-defined, dual-mode (grid-tied and microgrid) with split-phase power conversion, designed to pair with high-output PV modules.

⚙️ Key Features

• 384 VA peak / 380 VA continuous @ 240 VAC; 366 VA peak / 360 VA continuous @ 208 VAC

• DC Input Range: 18–60 V; MPPT window: 29.5–45 V; supports modules up to 540 W

• High Efficiency: ~97% CEC-weighted

• Compact & Lightweight: 212 × 175 × 30 mm (8.3″ × 6.9″ × 1.2″); ~2.4 lb

• Microgrid-Forming: Continues to produce power during grid outages (with IQ System Controller)

• Advanced Monitoring: Uses power-line communications and seamless integration with IQ Gateway + Enphase App

• Rugged & Safe: Certified to UL 1741-SA, IEEE 1547:2018, CA Rule 21; class II double-insulated enclosure

• 25-Year Warranty backed by over one million testing hours

📄 Official Datasheet

Download the full technical specs and installation details:
Enphase IQ8HC Microinverter Datasheet (PDF)
