MIDNITE SOLAR | MN BABY BOX

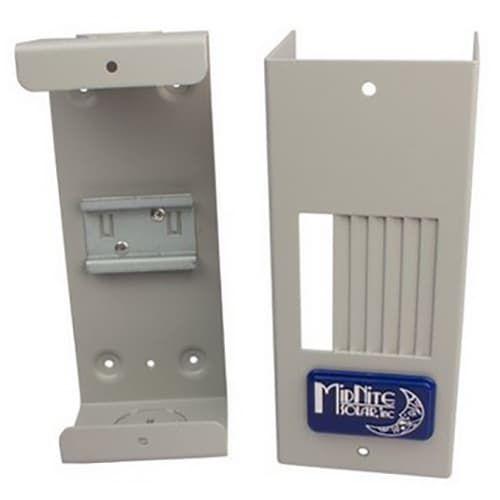

📦 MidNite Solar Baby Box (Model: MNBABYBOX)

The Baby Box is a compact aluminum enclosure engineered by MidNite Solar to house up to four DIN‑rail breakers—ideal for PV disconnects, city-grid isolation, or battery interface applications. Designed for indoor use (Type 1), it supports DC voltages up to 300 V and wire sizes up to AWG 6.

🧰 Key Features

• Breaker capacity: Supports up to 4 x MNEPV or MNEAC 13 mm breakers (1–63 A)

• Voltage rating: 300 V DC / 277 V AC maximum

• Wire capacity: Up to AWG 6 conductors; ground screw included

• Dimensions: 7″L × 3″W × 2.5″D (Shipping: ~8″ × 4″ × 3″)

• Weight: ~2 lb (~0.9 kg)

• Knockouts: ¾″ and 1″ on each end for conduit entry

• Certifications & Warranty: 5‑year limited warranty; Made in USA

Ideal for: small solar combiner applications, inverter disconnects, and AC/DC circuit distribution in residential or commercial PV installations.

📄 Official Instruction Manual (HTML Link)
