Packaging & Sales Information
-
Sold by pallet: 33 panels per pallet

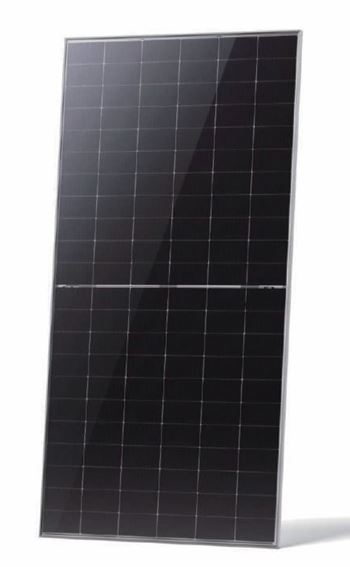

Nuuko 720W Bifacial – N-Type 132 Cell Dual Glass Module (NKM720N-132BDG12)
The Nuuko 720W is a high-power N-type bifacial dual-glass solar module engineered for utility-scale and large commercial applications requiring maximum output and long-term reliability. Built with 210mm N-type cells, advanced SMBB Technology, and Hot 2.0 technology, this module delivers exceptional energy yield with reduced degradation and superior bifacial performance.
Key Features
-
720W rated power output (STC) with 0 ~ +5W power tolerance for guaranteed performance.
-
Up to 23.2% module efficiency, maximizing power per module footprint.
-
N-type 210mm cell technology (132 cells, 6×22 configuration) for improved current collection and reliability.
-
Bifacial design (80±5% bifaciality) enabling additional rear-side energy gain depending on installation and ground reflectivity.
-
Hot 2.0 Technology, reducing LID/LETID and improving long-term performance stability.
-
Excellent weak-light performance, increasing production during cloudy, morning, and sunset conditions.
-
Anti-PID resistance for enhanced durability.
-
Certified to withstand 5400 Pa snow load and 2400 Pa wind load.
Technical Specifications (720W Model)
-
Model: NKM720N-132BDG12
-
Rated Power (Pmp): 720W (STC)
-
Open Circuit Voltage (Voc): 49.04V
-
Maximum Power Voltage (Vmpp): 40.88V
-
Maximum Power Current (Impp): 17.61A
-
Maximum System Voltage: 1500V DC (IEC)
-
Module Dimensions: 2384 × 1303 × 33 mm
-
Weight: 37 kg (81.6 lb)
-
Operating Temperature: -40°C to +85°C
-
Temperature Coefficient (Pmax): -0.29%/°C
Warranty
-
12-Year Product Warranty
-
30-Year Linear Power Warranty with only 0.4% annual degradation.
The Nuuko 720W module is ideal for projects targeting maximum power density, lower LCOE, and strong bifacial gains in large-scale installations.
