Description
SPECIAL PALLET PRICING

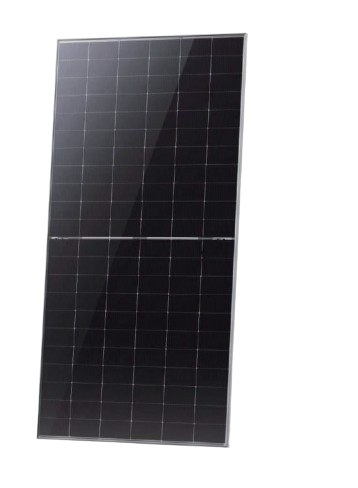

Nuuko 700–720W N-Type Bifacial Solar Panel
NKM-132N | 210mm Cell Technology
- $6,831 per pallet
- 33 panels per pallet
- Pallet sales only
- Shipped from our shop
📄 Product Datasheet
The Nuuko NKM-132N is a high-power N-type bifacial solar module featuring 210mm cells and designed for high power output and reliable performance. The module incorporates SMBB Technology, Hot 2.0 Technology, PID Resistance, and excellent weak-light performance.
KEY FEATURES
✔ 700–720W power range
✔ N-Type Mono-crystalline technology
✔ 210mm cell technology
✔ Bifacial module
✔ SMBB Technology
✔ Hot 2.0 Technology
✔ Excellent weak-light performance
✔ PID Resistance
✔ 80 ± 5% bifaciality
✔ 12-year product warranty
✔ 30-year linear power warranty
✔ 0.4% annual degradation over 30 years
ELECTRICAL SPECIFICATIONS
700W Model
• Rated Output: 700W
• Module Efficiency: 22.5%
• Voc: 48.40V
• Vmp: 40.41V
• Isc: 18.40A
• Imp: 17.33A
• Power Tolerance: 0 to +5W
705W Model
• Rated Output: 705W
• Module Efficiency: 22.7%
• Voc: 48.56V
• Vmp: 40.52V
• Isc: 18.46A
• Imp: 17.40A
• Power Tolerance: 0 to +5W
710W Model
• Rated Output: 710W
• Module Efficiency: 22.9%
• Voc: 48.73V
• Vmp: 40.64V
• Isc: 18.53A
• Imp: 17.47A
• Power Tolerance: 0 to +5W
715W Model
• Rated Output: 715W
• Module Efficiency: 23.0%
• Voc: 48.88V
• Vmp: 40.76V
• Isc: 18.60A
• Imp: 17.54A
• Power Tolerance: 0 to +5W
720W Model
• Rated Output: 720W
• Module Efficiency: 23.2%
• Voc: 49.04V
• Vmp: 40.88V
• Isc: 18.67A
• Imp: 17.61A
• Power Tolerance: 0 to +5W
MECHANICAL SPECIFICATIONS
• Cell Type: N-type Mono-crystalline
• Cell Arrangement: 132 (6 × 22)
• Weight: 37 kg
• Module Dimensions: 2384 × 1303 × 33 mm
• Cable: 4.0 mm², ±300 mm or customized length
• Front Glass: 2.0 mm, Anti-Reflection Coating
• Back Glass: 2.0 mm, Heat Strengthened Glass
• Bypass Diodes: 3/6
• Junction Box: IP68
• Frame: Anodized Aluminium Alloy
• Packing Configuration: 33 pcs/pallet
MAXIMUM RATINGS
• Maximum System Voltage: 1500V DC (IEC)
• Operating Temperature: -40°C to +85°C
• Maximum Series Fuse: 30A
• Snow Loading: 5400 Pa
• Wind Loading: 2400 Pa
• Protection Class: II
• Fire Type: Class C (IEC)
TEMPERATURE CHARACTERISTICS
• NMOT: 45°C ± 2°C
• Temperature Coefficient of Pmax: -0.29%/°C
• Temperature Coefficient of Voc: -0.25%/°C
• Temperature Coefficient of Isc: +0.045%/°C
WARRANTY
• 12-Year Product Warranty
• 30-Year Linear Power Warranty
• 0.4% Annual Degradation Over 30 Years
PALLET-ONLY SALES
This product is sold by the pallet only. Each pallet contains 33 panels.
Pallet Price: $6,831
Equivalent Price: $207x33 per panel
Shipped from our shop. HAPPY SHOPPING!
