Description
Freight shipping will be calculated per order, please call or email for freight shipping quote. (859) 428-7292 or info@mannsolar.com
Packaging & Sales Information
-
Sold by pallet: 36 panels per pallet

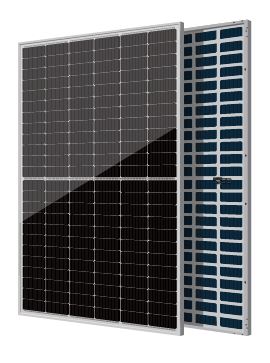

ZNShine Solar 590W – N-Type TOPCon Bifacial Dual Glass Module (ZXM7-UPLDD144)
The ZNShine Solar 590W module is a high-efficiency N-type TOPCon bifacial, dual-glass monocrystalline solar panel designed for high-power density and long-term reliability in residential, commercial, and utility-scale applications. With advanced 16BB half-cell technology and bifacial performance, this module delivers strong energy yield and excellent durability in demanding environments.
Key Features
- 590W nominal power output with high power density for fewer panels per system.
- Maximum efficiency up to 23.03%, maximizing energy production per square meter.
- N-type TOPCon cell technology for improved performance, lower LID, and long-term stability.
- Bifacial dual-glass design enabling up to 25% additional power gain from the rear side depending on installation conditions and albedo.
- 16BB half-cell architecture improves current collection and reduces resistive losses.
- Excellent low-light performance, increasing output during cloudy, hazy, and early-morning conditions.
- Anti-PID technology ensures long-term power stability.
- Built to withstand harsh environments, including salt, ammonia, sand, high heat, and high humidity.
Technical Highlights
- Model: ZXM7-UPLDD144 (590W)
- Cell type: N-type monocrystalline, 144 half-cells (6 × 24)
- Module efficiency: up to 23.03%
- Maximum system voltage: 1500V DC
- Module dimensions: 2278 × 1134 × 30 mm (with frame)
- Weight: 31.5 ± 1.0 kg (69.4 ± 2.2 lb)
- Mechanical load: up to 5400 Pa (front) and 2400 Pa (rear)
Warranty
- 12-year product workmanship warranty
- 30-year linear power output warranty, ensuring long-term performance and bankability.
The ZNShine Solar 590W module is an excellent choice for projects that require high efficiency, strong bifacial gains, and proven Tier-1 reliability.
