OFF GRID INVERTER | LUXPOWER | 6000W | SNA-US6000

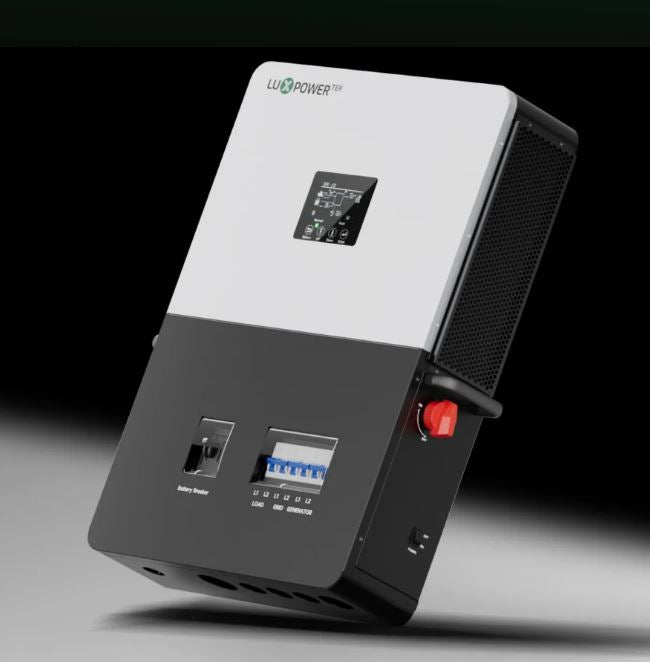

🔌 Luxpower SNA‑US 6000 – 6 kW Split‑Phase Off‑Grid/Hybrid Inverter

Reliable all‑in‑one inverter rated for 6 kW continuous output at 120/240 VAC split‑phase. Ideal for off‑grid, self‑consumption, backup, and EPS-enabled solar systems—with robust parallel scaling for up to 16 units.

⚙️ Key Features

• 6 kW continuous AC output, true sine wave, up to 12 kW surge for 25 s. Includes built‑in 60 A AC pass‑through relay.

• Dual MPPT solar chargers—up to 8 kW PV input (4 kW × 2 tracks), PV voltage range 100–480 V, MPPT window 120–385 V, max 17 A per MPPT.

• Battery compatibility: Supports 48 V Li‑ion/Lead‑Acid systems (38.4–60 V range), with 125 A charge / 140 A discharge current.

• Scalable up to 16 units in parallel, automatically assigned host inverter for balanced control.

• Supports off‑grid, grid‑pass‑through, and generator AC input modes, with dedicated ports and remote control.

• High efficiency: MPPT up to 99%, inverter efficiency ~93%, THD <3%, power factor ~1.

• Safety & Certifications: AFCI, GFCI, UL 1741, CSA C22.2, NEC 690.12 compliant; UL listed for USA/Canada.

• Smart connectivity with LCD/LED display, Wi‑Fi, RS485, CAN, USB; supports remote monitoring via app.

• Compact & robust, NEMA 3R/IP20 housing, weighs ~14.5 kg (33 lb), dimensions ~450×650×150 mm; typical noise <50 dB.

📏 Quick Specs

📄 Official Datasheet:
Download the Luxpower SNA‑US 6000 Datasheet (PDF)
