Description

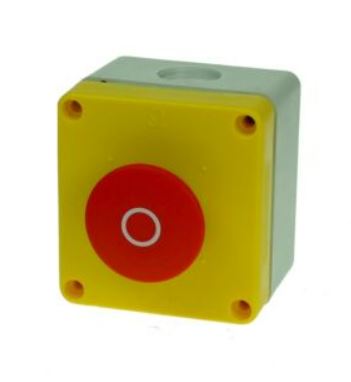

IMO BG10P34-11 Rapid Shutdown Initiator Button
The IMO BG10P34‑11 is a rugged outdoor-rated emergency stop switch used to trigger rapid shutdown in photovoltaic (PV) systems. Built with a twist-to-release red mushroom button and a yellow enclosure, it provides clear visibility and includes both Normally Open (NO) and Normally Closed (NC) contacts for versatile system integration.
- Emergency stop station (40 mm) with twist-to-release safety reset
- Dual contacts: 1 NO + 1 NC for flexible wiring options
- Rated up to 10 A AC / 600 V AC switching capability
- Suitable for PV rapid shutdown compliance (e.g., Sol-Ark, SMA, APsystems installations)
- IP65/67 ingress protection rating—dust-tight and water-resistant
- Operating temperature range: –40 °C to +55 °C
| Technical Specifications | |
|---|---|
| Model | BG10P34‑11 |
| Switch Type | Push‑button, twist-to-release reset |
| Contact Configuration | 1 Normally Open (NO) + 1 Normally Closed (NC) |
| Current Rating | 10 A AC |
| Voltage Rating | Up to 600 V AC |
| Enclosure Diameter | 40 mm |
| Ingress Protection | IP65 / IP67 |
| Operating Temperature | –40 °C to +55 °C |
| Weight | ≈ 0.06 kg (60 g) |
| Mounting | Surface / chassis mount with screw terminals |
