🔋 Meyer Burger Black MB‑390‑HJT120‑BB‑T2 – 390 W Heterojunction (HJT) Half‑Cell Solar Module

Premium all‑black module featuring advanced HJT cell technology and SmartWire Connection (SWCT®), engineered in Switzerland and made in Germany for top-tier performance in residential and commercial systems.

⚙️ Key Features

• 120 HJT Half‑Cells with SmartWire: Delivers up to ~21.2% module efficiency, enhanced shade tolerance, and exceptional cell durability.

• 390 W Power Output: High nominal power with low degradation over time.

• Robust Mechanical Strength: Rated for 6,000 Pa front and 4,000 Pa rear loads; robust black anodized frame designed for durability.

• Wide Temperature Range: −40 °C to +85 °C with excellent heat performance (Temp. coefficient ~–0.259 %/°C).

• Long-Term Warranty: 25‑year product and performance guarantee (92%+ output at 25 years).

• Certifications & Specs: IEC 61215/61730, PID, salt mist, fire-rated; black frame and backsheet with MC4/Evo connectors.

📏 Technical Specs

• Electrical (STC):

  • Pmax 390 W | Vmpp 38.9 V | Impp 10.1 A

  • Voc 44.6 V | Isc 10.6 A | Efficiency ~21.2 %

• Physical Dimensions: 1767 × 1041 × 35 mm (~69.6″ × 41.0″ × 1.4″); Weight ~43.4 lb (19.7 kg).

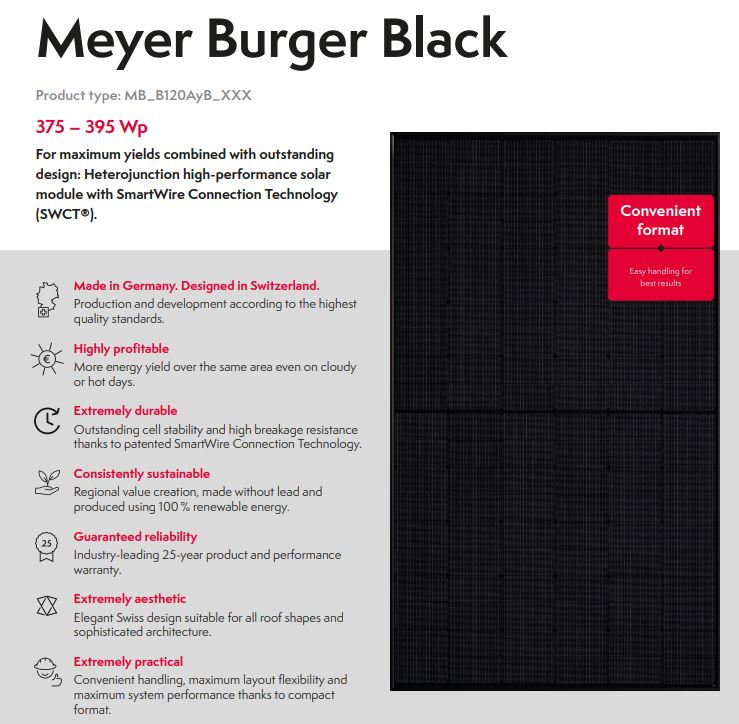

📄 Download the official datasheet for the Meyer Burger Black 375–395 W series (MB‑390‑HJT120‑BB‑T2):
Meyer Burger Black 375–395 W Datasheet (PDF)
