Description
Pallets ship from Pennsylvania and California - Freight shipping will be calculated per order, please call or email for freight shipping quote. (859) 428-7292 or info@mannsolar.com
Packaging & Sales Information
-
Sold by pallet: 36 panels per pallet

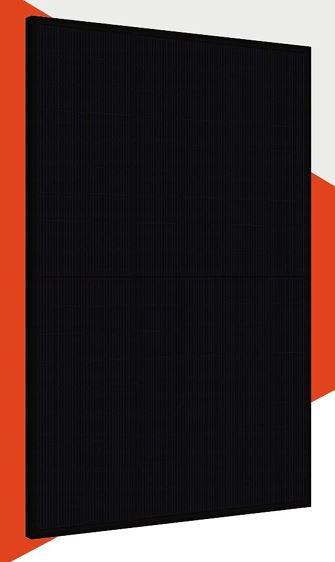

VSUN450N-108BMHS-DG-BT – High-Efficiency Solar Panel
The VSUN450N-108BMHS-DG-BT is a premium monocrystalline solar panel designed for residential and commercial installations. Built for durability and high performance, it provides reliable energy generation even under harsh conditions.
Key Specifications:
-
Maximum Power (Pmax): 450 W
-
Module Efficiency: ~21.3%
-
Open Circuit Voltage (Voc): 49.2 V
-
Short Circuit Current (Isc): 11.8 A
-
Maximum Power Voltage (Vmp): 41.0 V
-
Maximum Power Current (Imp): 10.98 A
-
Temperature Coefficient of Pmax: -0.35%/°C
-
Operating Temperature: -40 °C to 85 °C
-
Dimensions: 2278 × 1134 × 35 mm (89.6 × 44.6 × 1.38 in)
-
Weight: 27.5 kg (60.6 lbs) per pallet.
-
Frame: Anodized aluminum for enhanced durability
-
Junction Box: IP68 rated, weatherproof
-
Connector: MC4 compatible
Durable, high-performing, and easy to install, this panel is suitable for maximizing energy output in both small-scale and large-scale solar systems.
Datasheet:
