Packaging & Sales Information
-
Sold by pallet: 33 panels per pallet

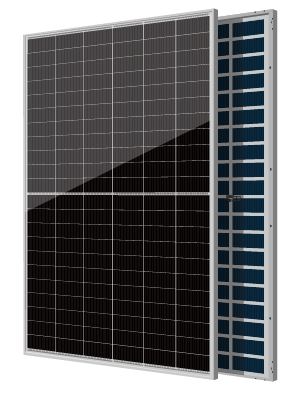

ZNSHINESOLAR ZXM8-GPLDD132 – Bifacial N-Type Double Glass Solar Panel (720 W)
Product Overview
The ZXM8-GPLDD132 is a next-generation N-type TOPCon bifacial double-glass module delivering 695 – 730 W of front-side power. Thanks to bifacial technology, it can achieve up to 25% additional rear-side gain (up to ~900 W). With an industry-leading efficiency of up to 23.5%, this module is designed for utility-scale and large commercial projects requiring maximum yield and long-term durability.
Key Features
-
Nominal Power (front side): 695 – 730 W
-
Maximum Efficiency: up to 23.5 %
-
Rear-Side Gain: up to 25 % extra output (up to ~900 W)
-
Cell Type: N-type monocrystalline, 132 half-cut cells (SMBB technology)
-
Open-Circuit Voltage (Voc): up to 49.5 V
-
Short-Circuit Current (Isc): up to 18.5 A
-
Voltage at Pmax (Vmp): up to 41.7 V
-
Current at Pmax (Imp): up to 17.5 A
-
Dimensions: 2384 × 1303 × 33 mm (≈ 93.9 × 51.3 × 1.3 in)
-
Weight: 38.5 kg (≈ 84.9 lb) per panel
-
Glass: 2.0 mm + 2.0 mm AR-coated, heat-strengthened
-
Frame: Black anodized aluminum alloy
-
Connector: MC4-compatible, IP68 junction box with 3 diodes
-
Mechanical Load: 5400 Pa (front) / 2400 Pa (rear)
-
Operating Temp.: –40 °C to +85 °C
-
Max System Voltage: 1500 V DC
-
Fuse Rating: 35 A
Advantages
-
High Output: N-type TOPCon + SMBB half-cell → higher efficiency and energy yield
-
Bifacial Boost: rear-side gain up to 25 % depending on albedo and mounting
-
Durability: certified resistance to PID, salt mist, ammonia, sand, high humidity & high temperature
-
Weak Light Performance: excellent generation under haze, cloudy weather, or early morning
-
Long Lifespan: low degradation (–0.40 %/year) ensures strong long-term returns
Warranty
-
Product Warranty: 12 years
-
Performance Warranty: 30 years
-
≤ 1% degradation in year 1
-
≤ 0.40 % per year thereafter
-
≥ 87.4 % of rated power guaranteed at year 30
-
Recommended Applications
Designed for utility-scale and large commercial installations, especially in high-irradiance zones or where reflective surfaces boost bifacial gain.
