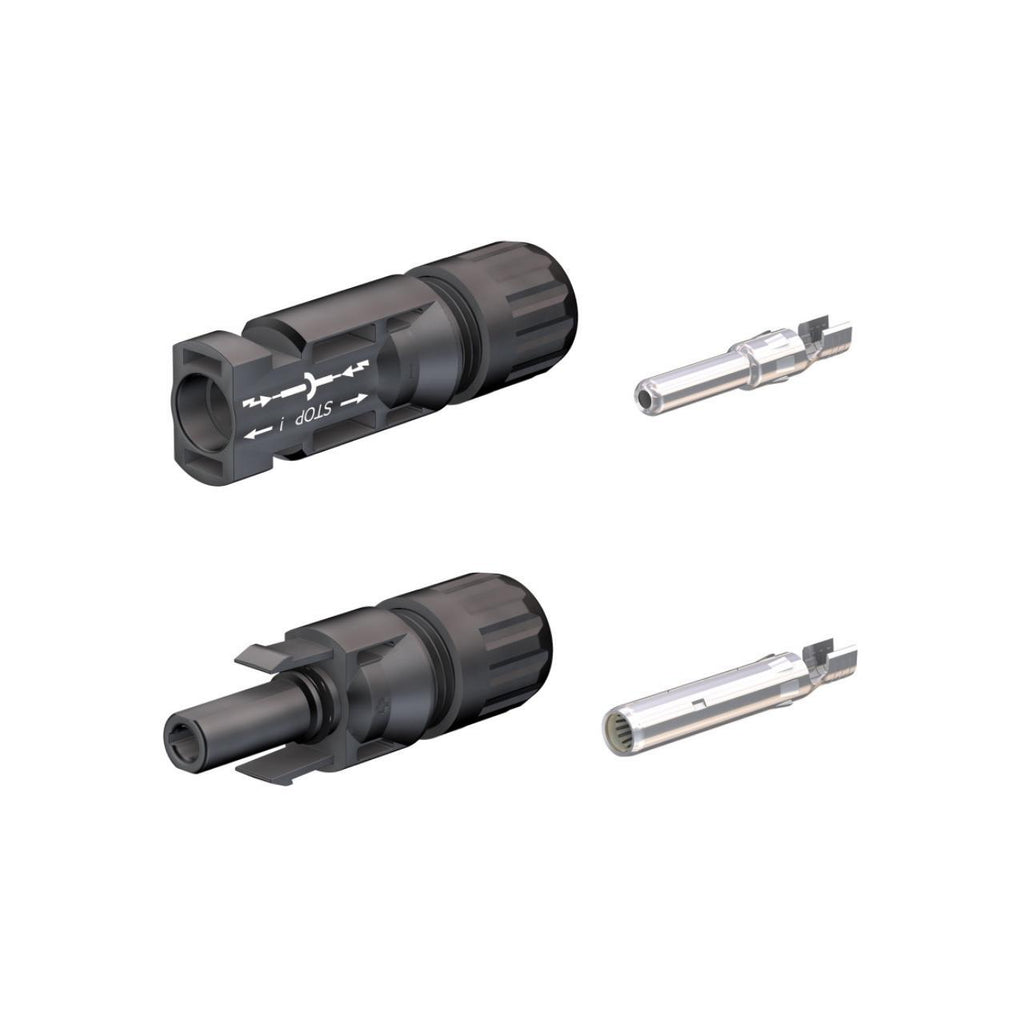

STAUBLI MC4 | MALE CONNECTOR W/ PINS
Roll over image to zoom in Click on image to zoom
STAUBLI MC4 | MALE CONNECTOR W/ PINS

STAUBLI MC4 | MALE CONNECTOR W/ PINS

Staubli
Price:
$2.75

Description

🔌 Stäubli MC4 Male Connector with Pin (MC4‑M)

The Stäubli MC4 Male Connector (MC4‑M) is engineered using MULTILAM® contact technology, ensuring low resistance and reliable long-term performance. Designed to mate securely with the female MC4 connector, it supports PV string voltages up to 1500 V DC and current ratings up to 70 A, depending on conductor size. Fully certified to IEC 62852, UL 6703, and TÜV Rheinland standards.

âś… Specifications

Specification Details
Connector Type MC4 Male plug with integrated pin
Rated Voltage Up to 1500 V DC (IEC/UL certified)
Rated Current Up to 70 A (using 8 AWG cable)
Operating Temp. –40 °C to +85 °C (IEC); UL up to +90 °C
Protection Degree IP65/IP68 (mated), IP2X (unmated)
Contact Resistance ≤ 0.25 mΩ (mated)
Insulator & Contact Material Tin-plated copper, polyamide (UL94‑V0)
Termination Barrel crimp
Locking System Snap-in locking with safety clip
Certifications UL 6703, IEC 62852, TĂśV Rheinland

⚖️ Weight & Dimensions

  • Weight: Approximately 0.01 kg (~10 g) or 0.03 lb, depending on variant and retailer.

  • Typical Size: Around 0.75 in Ă— 1.75 in Ă— 0.75 in.

📄  Download the official Stäubli MC4‑Evo 2 Male Connector Datasheet (PDF)
