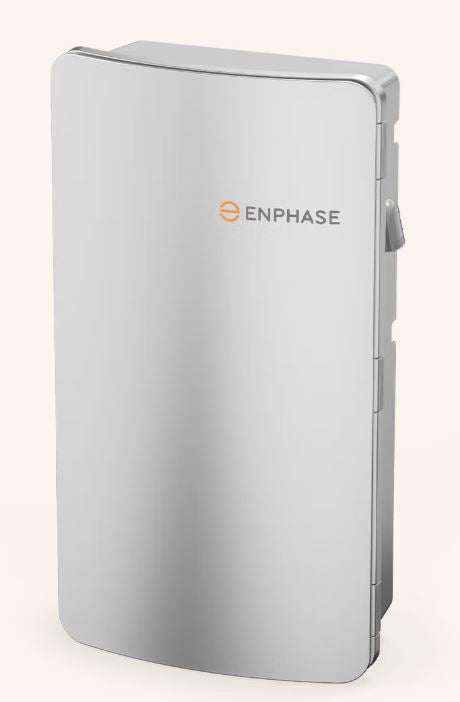

🔌 Enphase EP200G101‑M240US00 – 240 VAC IQ System Controller (Enpower Smart Switch)
This device acts as the microgrid interconnection device (MID) in Enphase Ensemble systems, managing seamless transitions between grid, solar, and battery backup power.
⚙️ Key Features
-
Provides automatic transfer between grid and backup power, enabling safe operation of Enphase IQ Batteries with microinverters.
-
Integrates neutral-forming transformer, service disconnect, and circuit breaker terminals in a single enclosure.
-
Supports main breakers up to 200 A, and continuous internal busbar current rating of 160 A.
-
Ideal for use with IQ6 and IQ7 series microinverters in retrofit applications.
-
Rated NEMA 3R / IP65, suitable for outdoor installation, with an operating range of −40 °C to +50 °C.
-
Dimensions: ~50 × 91.6 × 24.6 cm (19.7″ × 36″ × 9.7″), weight ~39 kg (85 lb). 10-year limited warranty.
📏 Technical Summary
| Specification | Details |
|---|---|
| Model | EP200G101‑M240US00 (IQ System Controller) |
| Voltage Range | 240 VAC ±20% |
| Max Continuous Current | 160 A internal |
| Main Breaker Support | Up to 200 A two-pole |
| NFT Power Capacity | 3.6 kVA continuous, 8.8 kVA peak |
| Dimensions (W×H×D) | 50 × 91.6 × 24.6 cm (19.7″ ×36″ ×9.7″) |
| Weight | ~39 kg (85 lb) |
| Operating Temp | −40 °C to +50 °C |
📄 Official Datasheet
For full installation details, wiring diagrams, and compliance specifications, use this updated link which remains functional in Shopify:
