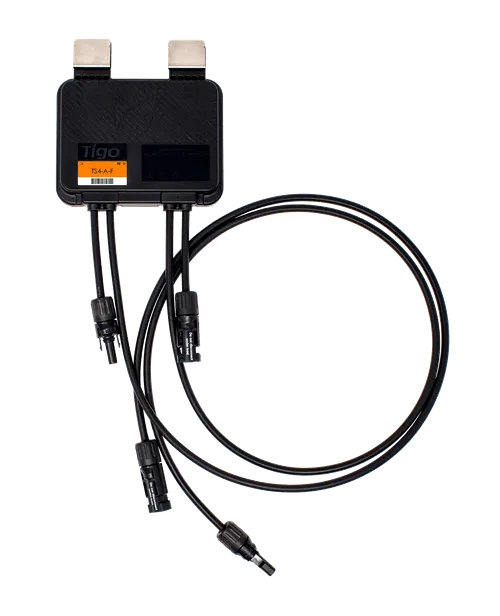

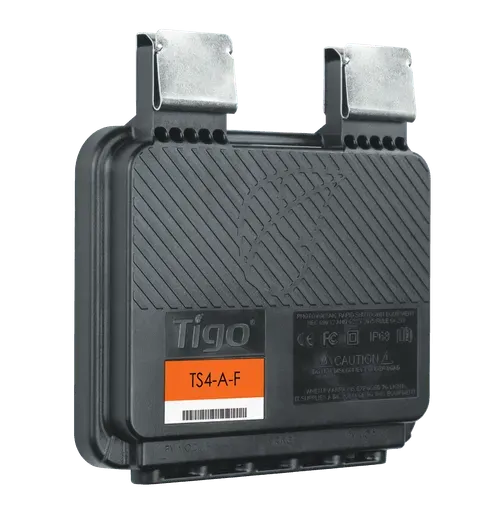

Tigo TS4‑A‑F Fire Safety Module – 25 A, up to 700 W, 1500 V UL / 1000 V IEC, MC4, 0.62 m or 1.2 m cable
The Tigo TS4‑A‑F is a UL and IEC certified module-level rapid shutdown device designed for enhanced PV system safety. It supports up to 700 W per module, with maximum current of 25 A (Isc) and voltage ratings of 1500 V UL / 1000 V IEC .
It features MC4 connectors and comes with standard 1.2 m output cable (also available in 0.62 m), enabling fast and compliant shutoff per NEC requirements. Communication is via PLC with RSS transmitter, and installation is tool-free using snap-on mounting.
Ideal for residential or commercial installs requiring NEC 2014/2017/2020 rapid shutdown compliance, the TS4‑A‑F protects against dangerous PV voltages during grid outages and supports module-level safety ✅.
📄 link to datasheet:
Download the Tigo TS4‑A‑F Fire Safety Module Datasheet (English, v3.5, Dec 20 2024)
