Description
Freight shipping will be calculated per order, please call or email for freight shipping quote. (859) 428-7292 or info@mannsolar.com
Packaging & Sales Information
-
Sold by pallet: 36 panels per pallet

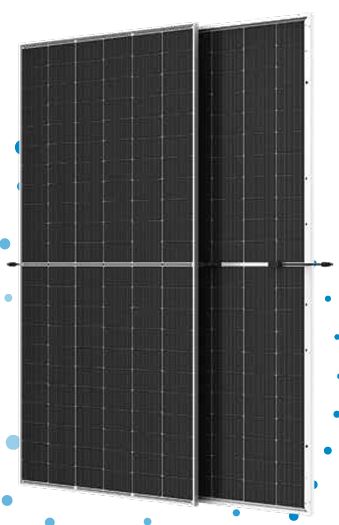

Trina Solar Vertex N 610W – N-Type i-TOPCon Bifacial Dual Glass Module (TSM-NEG19RC.20)
The Trina Solar Vertex N 610W is a high-performance monocrystalline, N-type i-TOPCon bifacial dual-glass solar module, engineered for maximum energy yield, long-term reliability, and strong project economics. With up to 22.6% module efficiency and positive power tolerance (0 ~ +5W), this panel delivers consistent and dependable performance for residential and commercial solar installations.
Key Features
- 610W maximum power output with 0 ~ +5W positive power tolerance for guaranteed performance.
- Up to 22.6% efficiency, enabling more power generation per panel.
- Advanced N-type i-TOPCon technology for higher energy yield and lower degradation over time.
- Bifacial dual-glass design, allowing additional energy gain from the rear side depending on site albedo.
- Low degradation rate: 1% in the first year, then only 0.4% annually.
- Excellent temperature coefficient (-0.30%/°C), improving performance in hot environments.
- High mechanical strength: 5400 Pa front load and 2400 Pa back load, suitable for demanding conditions.
- Designed for compatibility with standard BOS components, reducing installation complexity and costs.
Technical Highlights
- Model: TSM-NEG19RC.20 (610W)
- Maximum system voltage: 1500V DC (IEC / UL)
- Cell type: N-type monocrystalline (132 cells)
- Dimensions: 2382 × 1134 × 30 mm (93.78 × 44.65 × 1.18 in)
- Weight: 33.7 kg (74.3 lb)
Warranty
- 12-year product workmanship warranty
- 30-year power output warranty, ensuring long-term performance and reliability.
The Trina Solar Vertex N 610W is an excellent choice for projects that demand high power density, durability, and long-term energy production.
