UZ ENERGY | UZ 2-BATTERY WALL MOUNT CABINET | P200B


Price:
Sale price$399.00

Description

Ship from Kentucky. Freight shipping will be calculated per order, please call or email for freight shipping quote. (859) 428-7292 or info@mannsolar.com

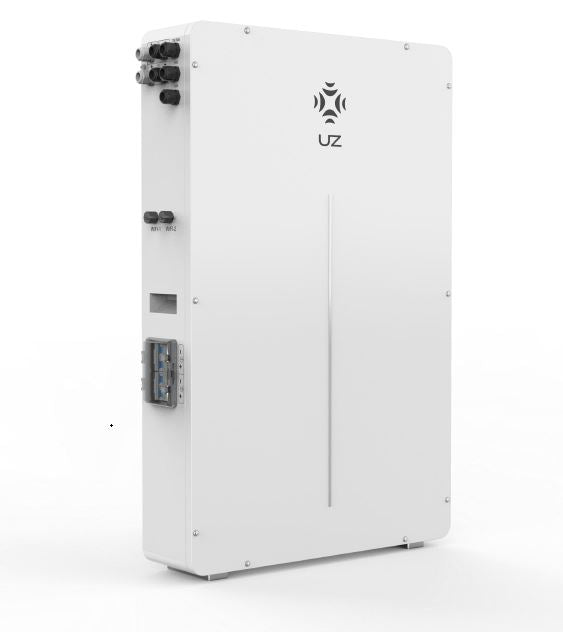

UZ Energy P200B – 2-Battery Wall Mount Cabinet

Smart, compact, and weather-ready enclosure for UZ Model A batteries.

Key Features

  • Dual-Battery Enclosure
    It is basically a case designed to hold two UZ Model A batteries, protecting and containing them for indoor or outdoor use.

  • Durable Construction
    Made from SGCC steel (1.2 mm thickness) with powder-coat finish. Built to last in demanding environments.

  • Weather Protection
    IP65 rating keeps dust and rain out, ensuring reliable operation both inside and outside.

  • Flexible Installation

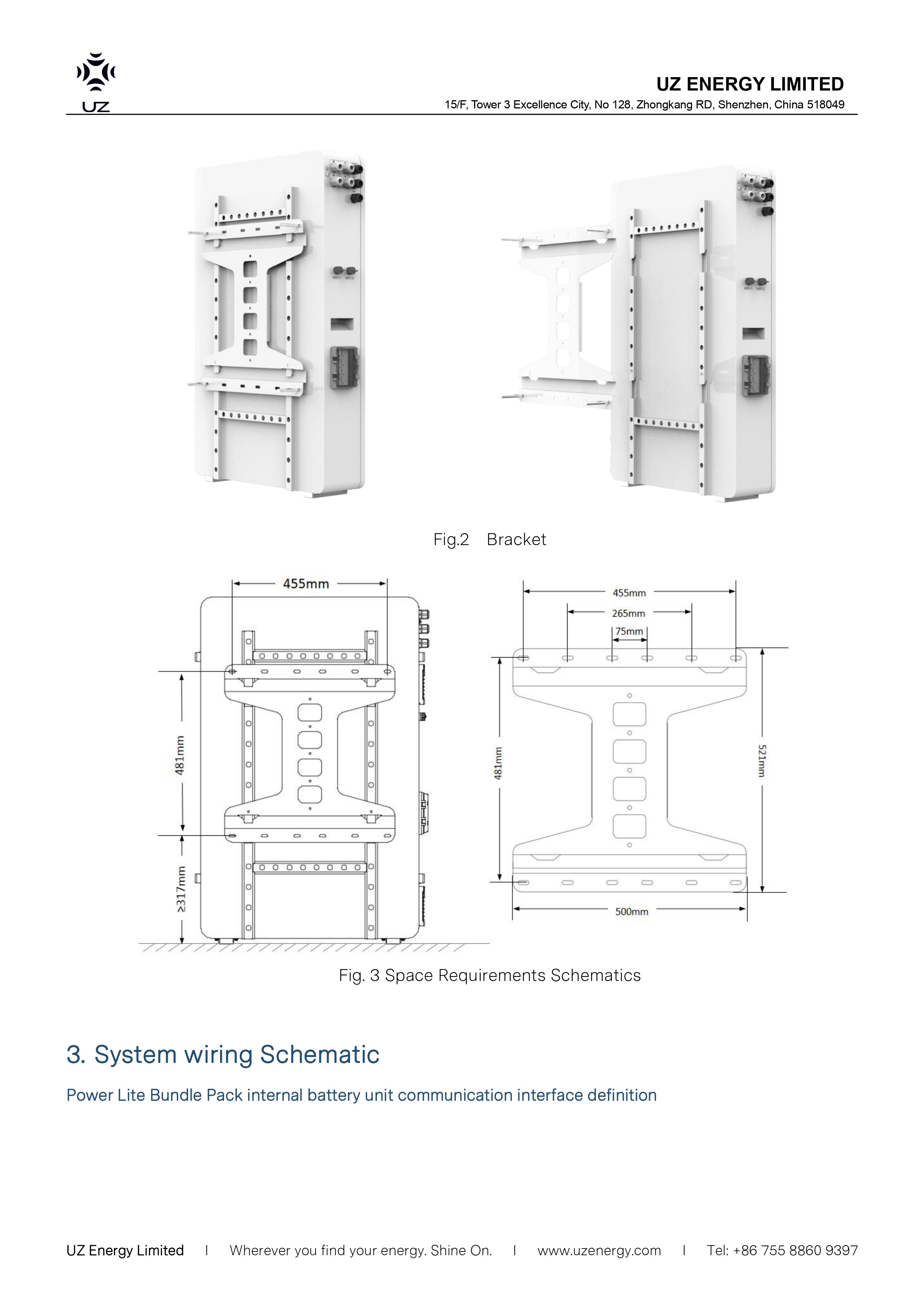

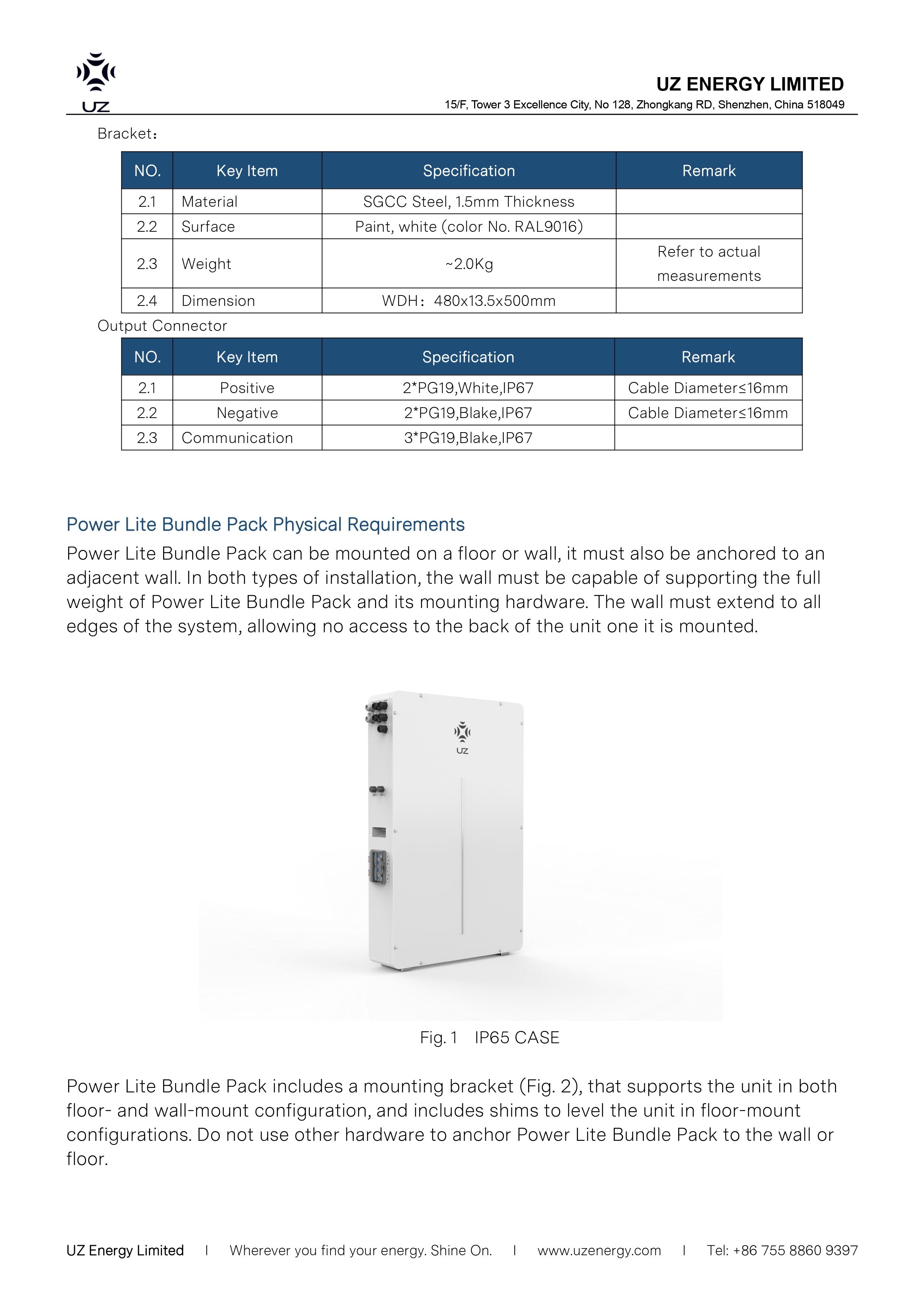

    Can be mounted on the floor or wall, with included brackets and shims for secure placement.

  • Scalable Energy Storage

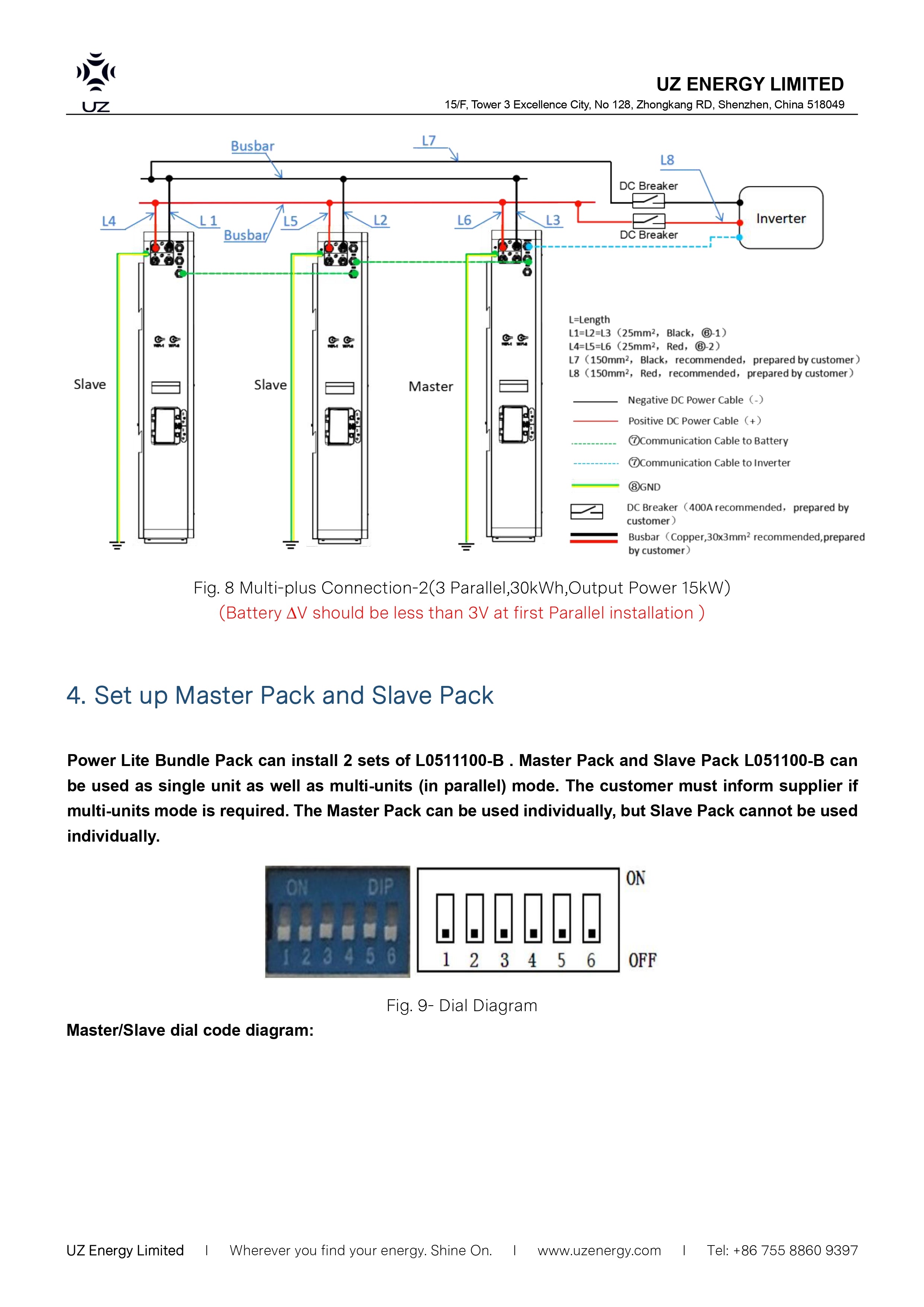

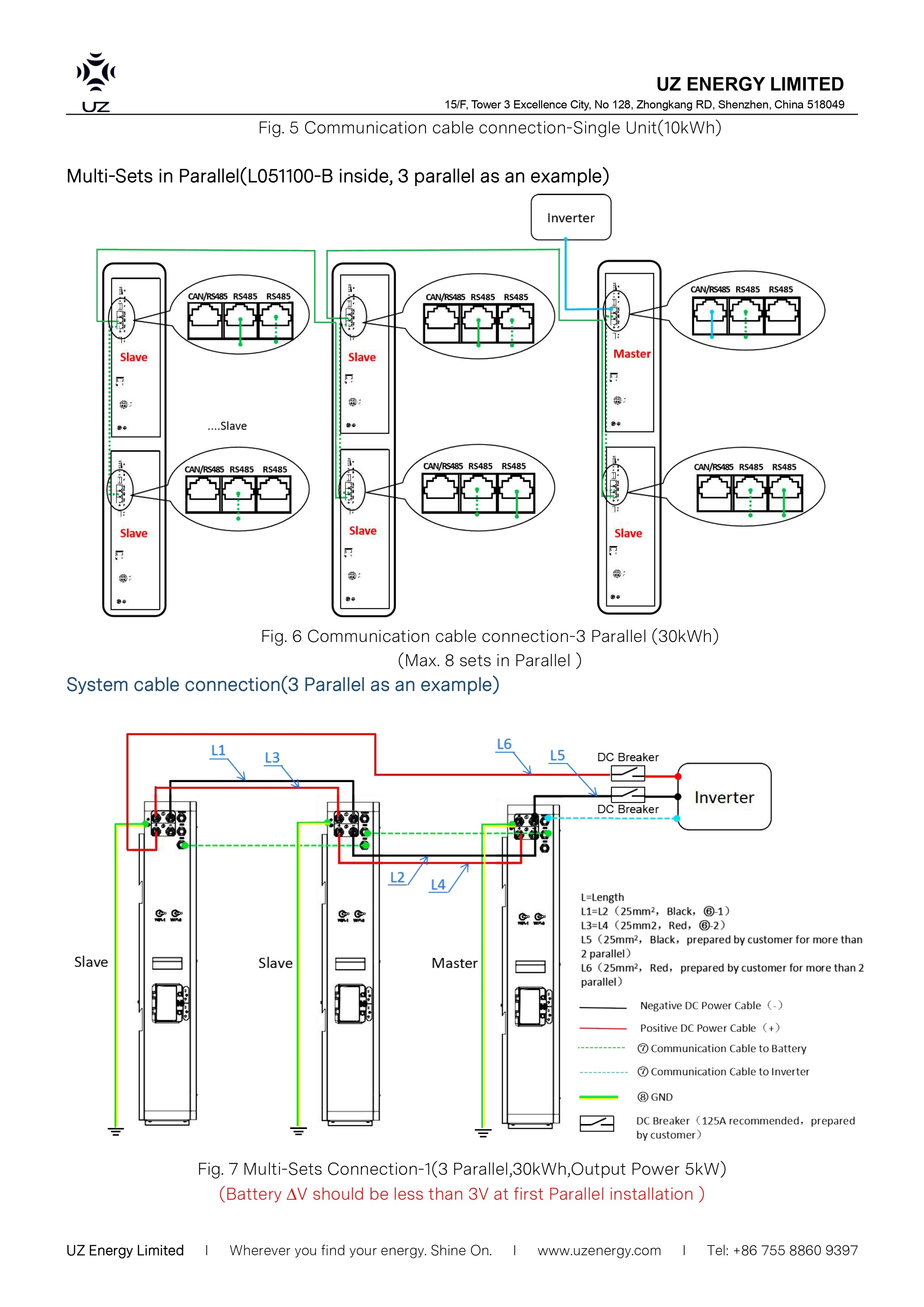

    Supports 2 x L051100-B battery units (each ~5.12 kWh), giving a combined system of ~10.24 kWh per cabinet. Up to 8 cabinets can be paralleled (≈80 kWh total).

  • Smart Connectivity

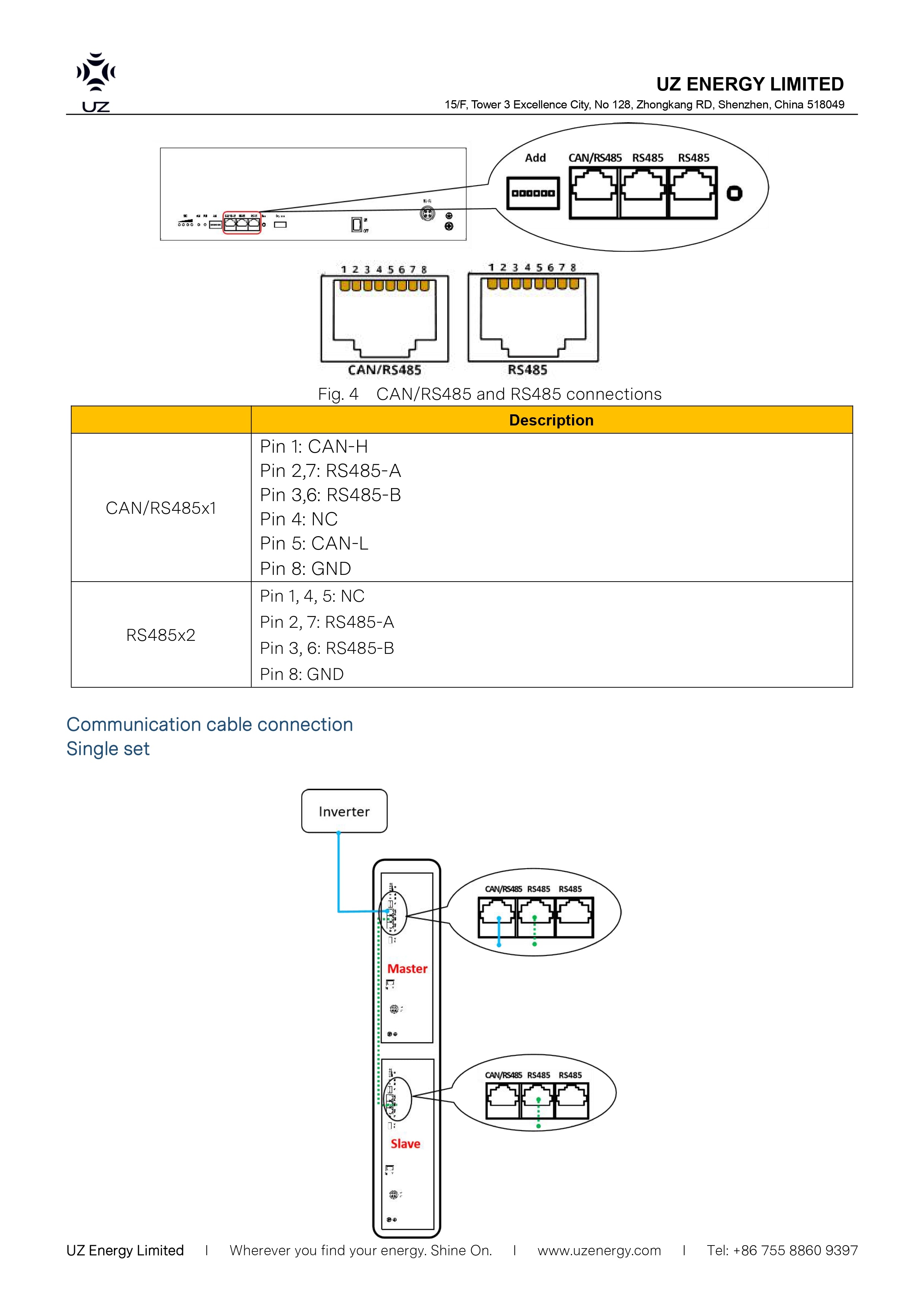

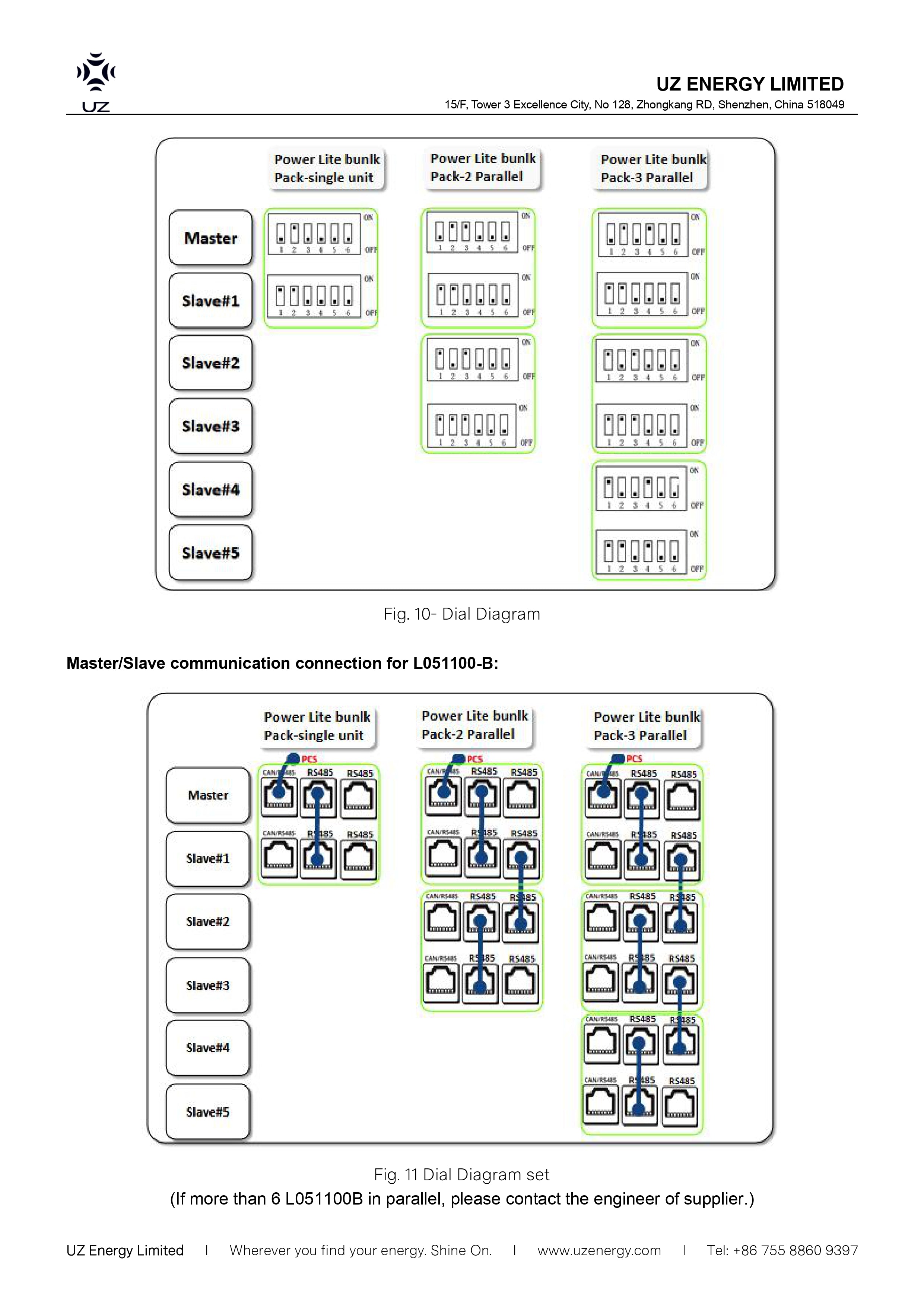

    Compatible with CAN/RS485/Dry Contact/WiFi communication for seamless integration.

  • Safety & Certification
    UL1973, UL9540A, UN38.3 certifications for battery units. Designed for 10+ year calendar life.

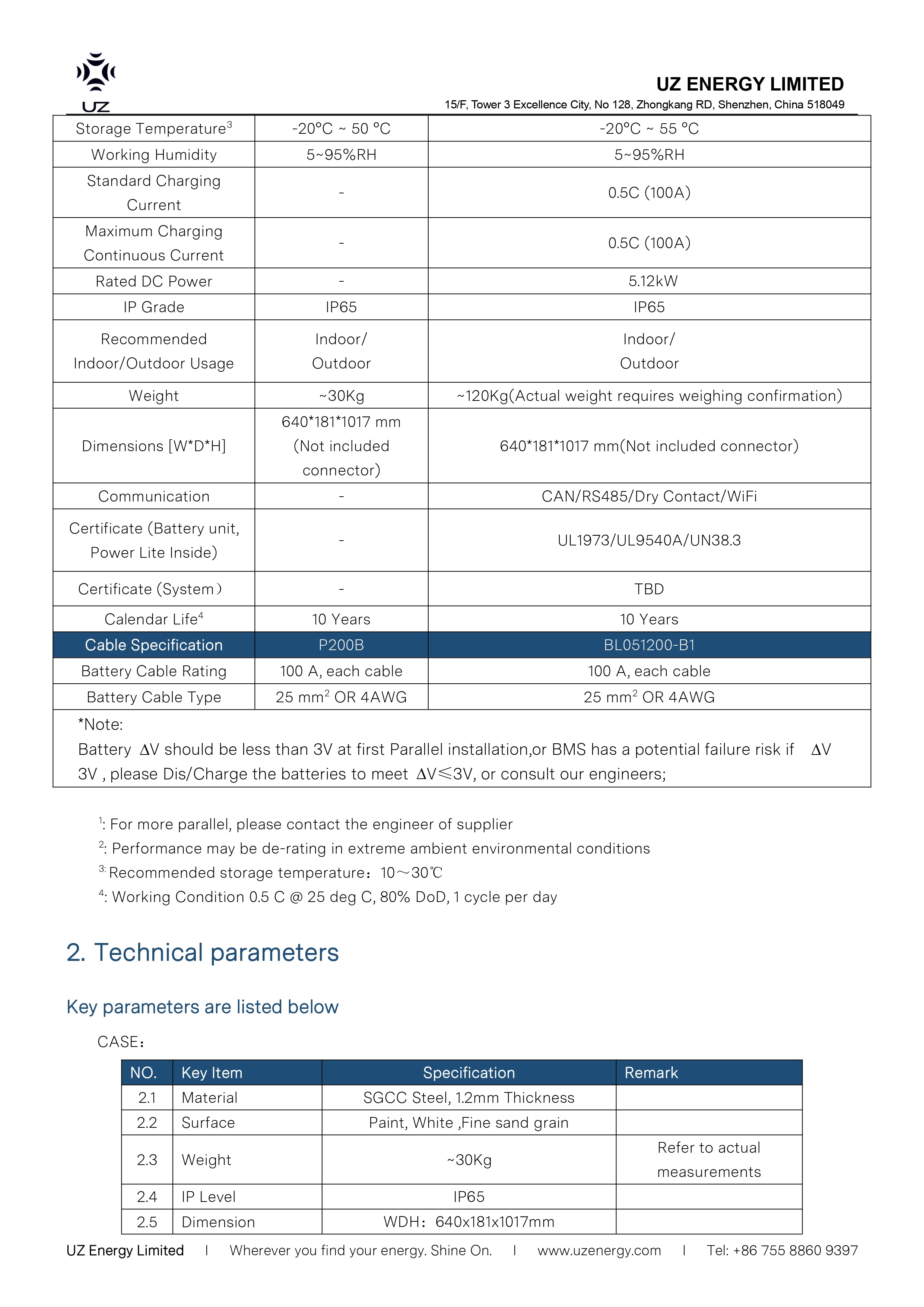

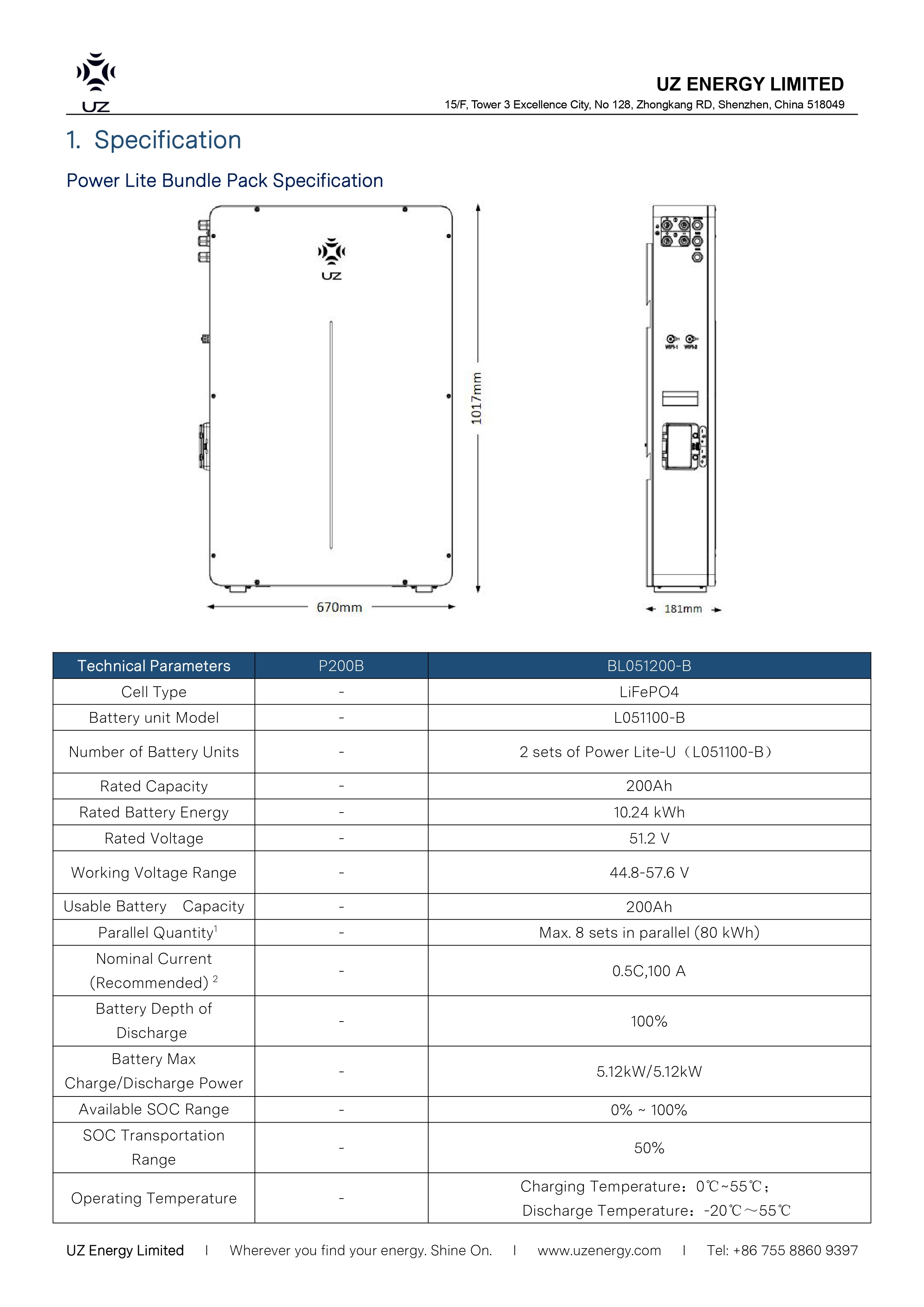

Technical Specifications

Item Detail
Battery Units 2 × UZ L051100-B (Model A)
Rated Energy 10.24 kWh
Nominal Voltage 51.2 V (44.8–57.6 V range)
Rated Capacity 200 Ah
Max Parallel 8 sets (up to 80 kWh)
Charge/Discharge Power 5.12 kW
Enclosure Material SGCC Steel, 1.2 mm
IP Rating IP65 (indoor/outdoor)
Dimensions (W×D×H) 640 × 181 × 1017 mm
Weight (empty) ~30 kg
Cooling Natural (fanless)
Communication CAN, RS485, Dry Contact, WiFi
Design Life 10 years+
