Packaging & Sales Information
-
Sold by pallet: 31 panels per pallet

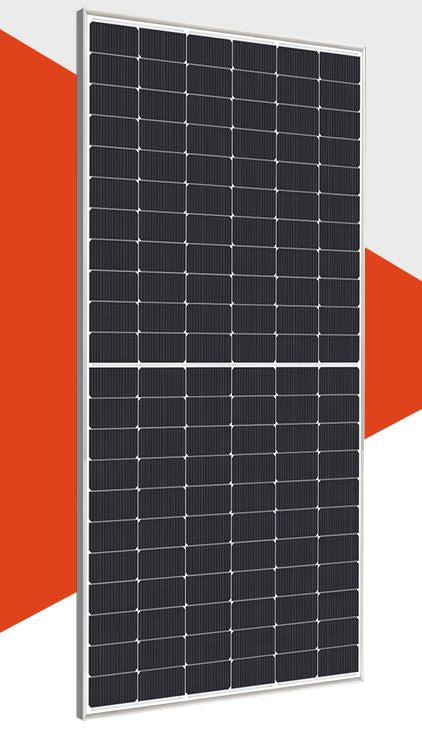

VSUN 620W – N-Type Bifacial Dual Glass Module (VSUN620N-132BMHR-DG)
The VSUN 620W is a high-efficiency N-type bifacial dual-glass solar module engineered for large commercial and utility-scale installations requiring maximum power output and long-term reliability. Built with 132 half-cut N-type cells, this module delivers excellent energy yield, strong bifacial performance, and enhanced durability under demanding environmental conditions.
Designed for high system voltage applications and optimized BOS cost reduction, the VSUN 620W module is ideal for projects targeting lower LCOE and maximum generation per module.
Key Features
-
620W rated power output (STC)
-
N-type cell technology for improved efficiency and reduced degradation
-
Bifacial dual-glass design allowing additional rear-side energy gain depending on albedo and installation configuration
-
Positive power tolerance (0 ~ +5W)
-
Excellent low-light performance for improved production in cloudy and early morning conditions
-
High mechanical load capacity suitable for snow and wind-heavy regions
-
Optimized for 1500V DC systems, reducing BOS and cabling costs
Technical Specifications (620W Model)
-
Model: VSUN620N-132BMHR-DG
-
Cell configuration: 132 half-cut cells
-
Module dimensions: 2382 × 1134 × 35 mm
-
Maximum system voltage: 1500V DC
-
Operating temperature: -40°C to +85°C
-
Dual-glass construction for enhanced durability and moisture resistance
Warranty
-
Long-term product and performance warranty (refer to official datasheet for full warranty terms)
The VSUN 620W module is a strong choice for projects requiring high-output modules, bifacial gains, and long-term performance stability.
